5-Port Gigabit Desktop PoE Switch with 4-Port PoE+

    Categories

    TP-Link TL-SG1005LP 5-Port Gigabit PoE switch TP-Link TL-SG1005LP switch for home and office use.Power over Ethernet (PoE) feature on the TP-Link TL-SG1005LP in actionTP-Link TL-SG1005LP connecting multiple devices in a small business environment

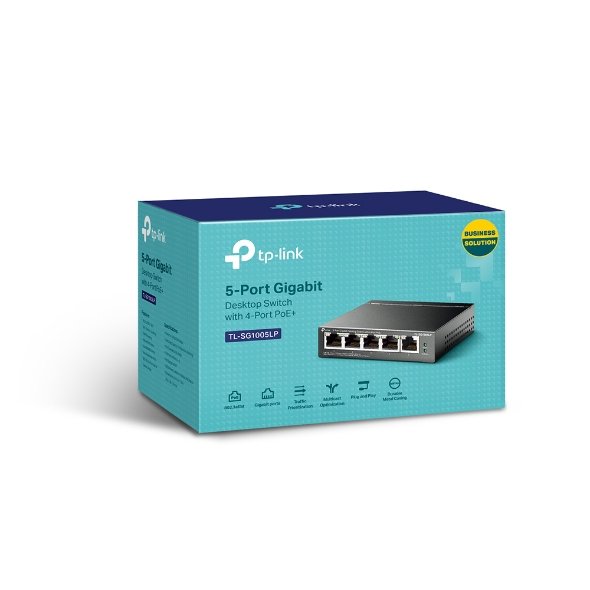

    TP-Link TL-SG1005LP 5-Port Gigabit PoE switch
    TP-Link TL-SG1005LP switch for home and office use.
    Power over Ethernet (PoE) feature on the TP-Link TL-SG1005LP in action
    TP-Link TL-SG1005LP connecting multiple devices in a small business environment

    Share this product on social media

    SKU: TPL-TL-SG1005LP

    TL-SG1005LP 5-Port Gigabit Unmanaged PoE Switch. With Power over Ethernet support, plug-and-play setup, and a compact design

    MPN: TL-SG1005LP
    Warranty: MFR - Lifetime - Terms Apply



    Product Description


    Professional 5-Port Gigabit Switch with 4 PoE+ Ports Plug and Play, with PoE power supply which meets the needs of diverse devices.

    • Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications
    Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

    • Intelligent Power Management
    When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

    • Advanced Functions for Higher Performance
    Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
    IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

    • Durable Metal Casing
    The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.
    Technical Specifications
    Forwarding rate 7.44 Mpps Flow control support Yes
    Auto MDI/MDI-X Yes Auto-negotiation Yes
    MAC address table 2000 entries Switching capacity 10 Gbit/s
    Jumbo frames support Yes Jumbo frames 16000
    Rack mounting No Fanless Yes
    Power supply included Yes Power over Ethernet (PoE) Yes
    Power over Ethernet plus (PoE+) ports quantity 4 Heat dissipation 161.98 BTU/h
    10G support No Store-and-forward Yes
    Power source DC/PoE User guide Yes
    Input current 0.81 A Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
    Cable types supported Cat3, Cat4, Cat5, Cat5e, Cat6 DC input voltage 53.5 V
    Total Power over Ethernet (PoE) budget 40 W Gigabit Ethernet (copper) ports quantity 5
    Stackable No MAC address auto-learning supported Yes
    MAC address auto-aging supported Yes Maximum cable length 100 m
    Storage relative humidity (H-H) 5 - 90% Operating relative humidity (H-H) 10 - 90%
    Operating temperature (T-T) 0 - 40 °C AC input voltage 100 - 240 V
    AC input frequency 50/60 Hz Width 99.8 mm
    Depth 98 mm Height 25 mm
    Package type Box Sustainability compliance Yes
    Certification FCC, CE, RoHS LED indicators Yes
    Networking standards IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x Storage temperature (T-T) -40 - 70 °C
    Product colour Black Package width 131 mm
    Package depth 196 mm Package height 121 mm
    Package weight 730 g Wall mountable Yes
    IGMP snooping Yes Quality of Service (QoS) support Yes
    Harmonized System (HS) code 85176990 Power consumption (max) 47.5 W
    Compliance certificates CE, Federal Communications Commission (FCC), RoHS Switch type Unmanaged
    Basic switching RJ-45 Ethernet ports quantity 5 Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
