SKU: TPL-TL-SF1016
Shop TP-Link
TPL-TL-SF1016 plug-and-play setup, robust data transmission, and desktop or rackmount installation options for seamless network expansion
MPN:
TL-SF1016
Warranty:
MFR - Lifetime - Terms Apply
Register/Login to View Price

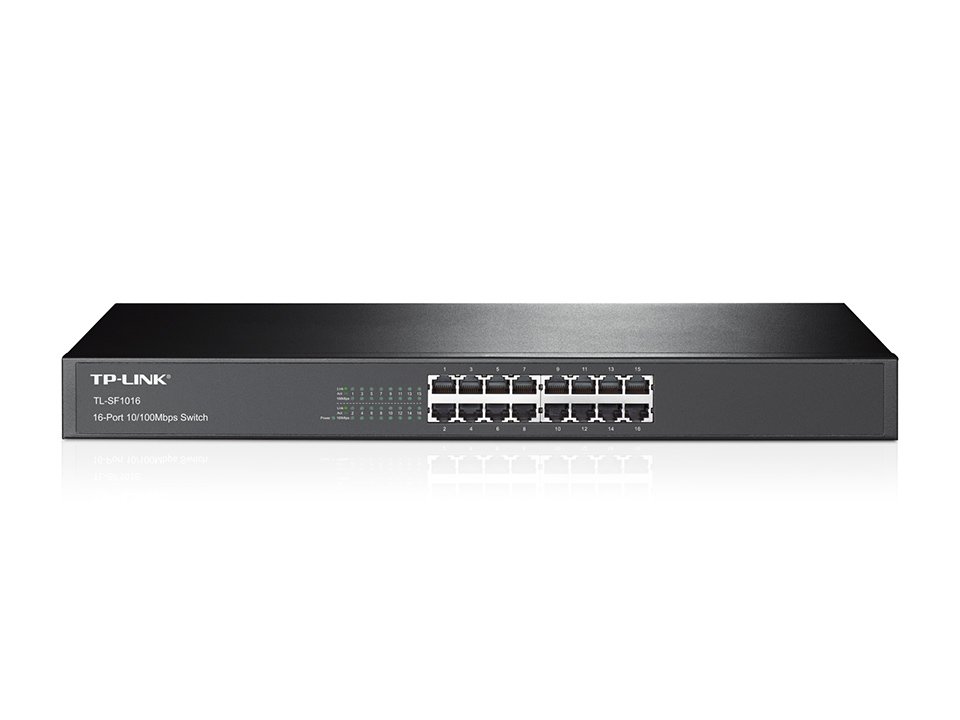

The 16-Port 10/100Mbps Rackmount Switch TL-SF1016 provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016 can save up to 70%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
Features:
- Innovative energy-efficient technology saves power up to 70%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 3.2 Gbps Switching Capacity
- Store and forward Switching scheme
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
- Plug and Play design simplifies installation
- Fanless design to make sure it works quietly
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 3.2 Gbps Switching Capacity
- Store and forward Switching scheme
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
- Plug and Play design simplifies installation
- Fanless design to make sure it works quietly
- TP-LINK Green Technology
- High Performance
- Easy to Use
| Harmonized System (HS) code | 85176990 | Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
|---|---|---|---|
| Power connector | DC-in jack | Rack mount kit | Yes |
| Power over Ethernet (PoE) | No | Rack mounting | Yes |
| Packet buffer memory | 2 MB | Switching capacity | 3.2 Gbit/s |
| MAC address table | 8000 entries | Auto MDI/MDI-X | Yes |
| 10G support | No | Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity | 16 | Switch type | Unmanaged |
| Power consumption (max) | 2.23 W | Product colour | Black |
| Cables included | AC | Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C | Networking standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| LED indicators | Yes | Form factor | 1U |
| Height | 44 mm | Depth | 180 mm |
| Width | 440 mm | AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V | Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
