SKU: TPL-EAP623-Outdoor-HD
Shop TP-Link

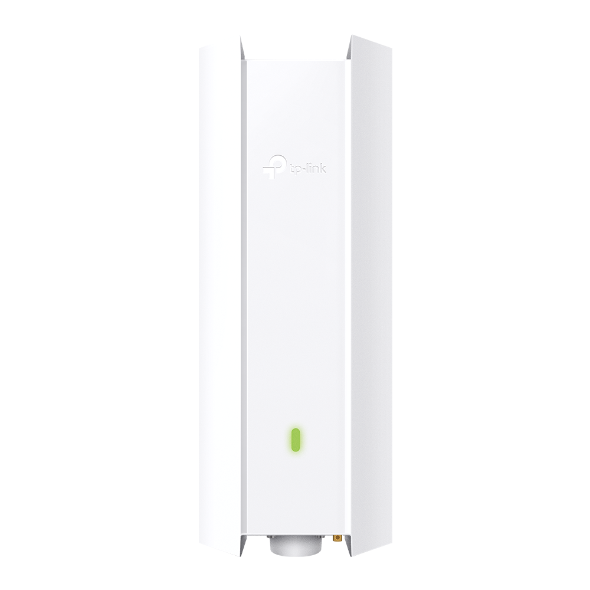

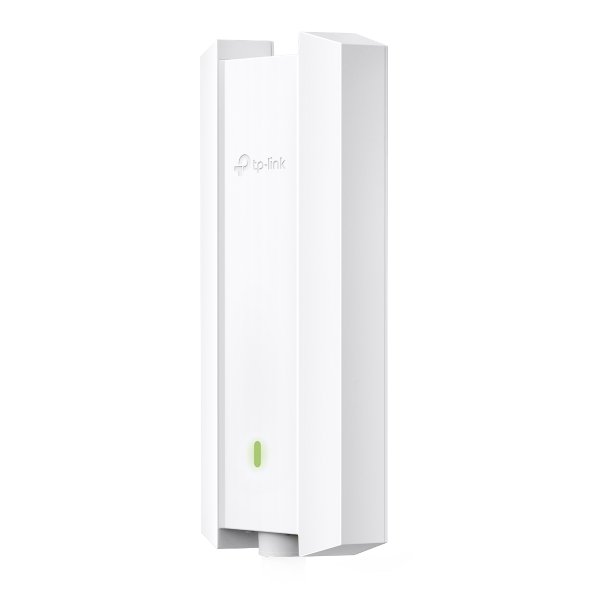

Upgrade your outdoor wireless network with the TPL-EAP623 Outdoor HD. Featuring WiFi 6 technology and high-density performance, IC PLUS,
MPN:
EAP623-Outdoor HD
Warranty:
RTB - 24 Months
Register/Login to View Price
- Long-Range, High-Speed WiFi 6
Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 1.8 Gbps.
- Explore More with Smart Antennas
Ideal for High-Density Outdoor Scenes
OFDMA and MU-MIMO provide simultaneous connections for dozens of clients in large open areas.
Equipped with an IP67 weatherproof enclosure, our EAP623-Outdoor HD withstands the most extreme environments.
Flexible Deployment with Omada Mesh and PoE Support
Seamless Integration into Omada SDN
| Number of users | 1020 user(s) | VLAN support | Yes |
|---|---|---|---|
| MAC address filtering | Yes | Power over Ethernet (PoE) | Yes |
| Frequency band | 2.4 - 5 GHz | Access Control List (ACL) | Yes |
| Maximum data transfer rate | 1800 Mbit/s | Cabling technology | 10/100/1000Base-T(X) |
| 2.4 GHz | Yes | 5 GHz | Yes |
| 6 GHz | No | Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s | Rate limiting | Yes |
| Automatic channel scanning | Yes | MIMO type | Multi User MIMO |
| Band steering | Yes | Airtime Fairness (ATF) | Yes |
| Transmitting power (CE) | < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP); | Transmitting power (FCC) | < 25 dBm (2.4 GHz), < 25 dBm (5 GHz) |
| Remote Authentication Dial-In User Service (RADIUS) | Yes | Syslog | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE | Placement | Pole |
| Antenna direction type | Omni-directional | Antenna features | Integrated antenna |
| Storage temperature (T-T) | -40 - 70 °C | Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 70 °C | Width | 280.4 mm |
| Depth | 106.5 mm | Height | 56.8 mm |
| Quantity per pack | 1 pc(s) | Certification | CE, FCC, RoHS |
| LED indicators | Yes | Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN (RJ-45) ports | 1 | Security algorithms | SNMP, SNMPv2, SNMPv3, SSH |
| Reset button | Yes | Product colour | White |
| Storage relative humidity (H-H) | 5 - 90% | Quick start guide | Yes |
| Antenna type | Internal | Quality of Service (QoS) support | Yes |
| BeamForming | Yes | MIMO | Yes |
| Mounting kit | Yes | Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Automatic channel selection | Yes | Antennas quantity | 2 |
| Web-based management | Yes |
