60W 4 Port PoE Extender over Coax 500M (IP09PH+IP09CPR)

    Categories

    IP09CPHK 4-Port PoE Extender for Remote Power and Signal ExtensionIP09CPHK Coaxial Cable PoE Extender with 500M Signal ExtensionIP09CPHK Coaxial Cable PoE Extender with Surge Protection
    SC&T
    IP09CPHK 4-Port PoE Extender for Remote Power and Signal Extension
    IP09CPHK Coaxial Cable PoE Extender with 500M Signal Extension
    IP09CPHK Coaxial Cable PoE Extender with Surge Protection

    Share this product on social media

    SKU: SCT-IP09CPHK
    SC&T Shop SC&T

    Discover the 60W 4 Port PoE Extender over Coax (IP09PH+IP09CPR) by IC Plus, extending power and data up to 500M. Learn more at www.ic.plus

    Warranty: RTB - 24 Months



    Product Description
    SC&T

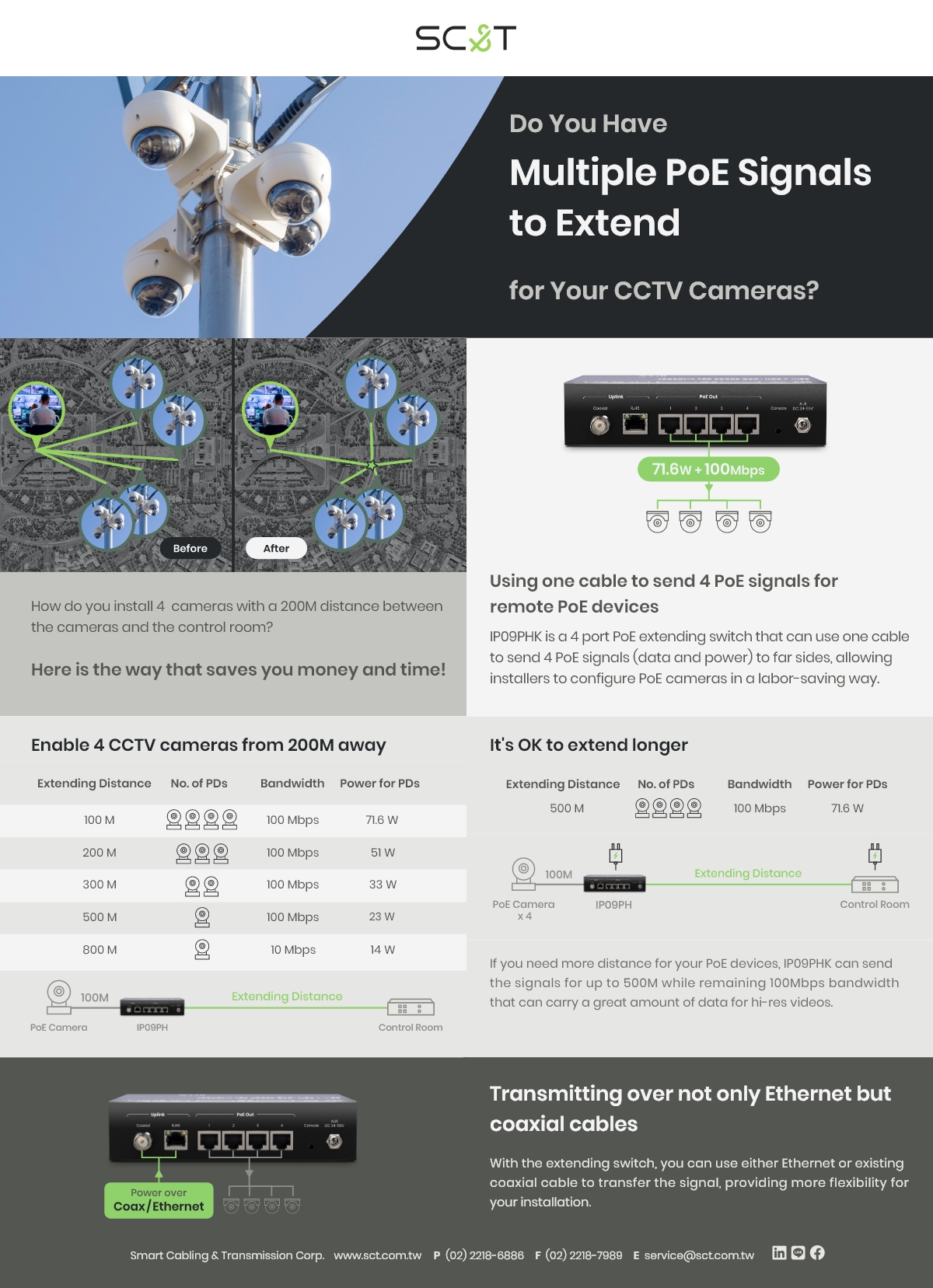

    IP09CPHK is a 4 port PoE (Power over Ethernet) extender that can use coaxial cables to extend TCP/IP signal and huge amount of power for remote PoE devices, such as speed dome cameras, Dante PoE speakers, smart lights...etc., with no external power required. It's a perfect solution for large-scale environment, such as enterprises, amusement parks and factories.

    Features:

    • Signal extension up to 500M over a coaxial cable
    • Network bandwidth up to 100Mbps
    • Provides up to 90W power, Max. 30W for each port
    • Power source from either a PoE switch or a power adapter
    • Built-in 30KV ESD, 40A EFT and 30A surge protection on RJ45 side
    • Built-in 30KV ESD, 40A EFT, and 2KA surge protection on BNC side
    • Supports full-duplex, half-duplex, and auto MDI, MDI-X switching

    Using IP09CPR (PoE Extender) and a PoE Switch
    Diagram

    Using IP09PR (PoE Extender) and a Power Adapter

    Diagram

    Use IP09 (Ethernet Extender) and Power Adapter at IP09PH

    Diagram
