SKU: VIGI-NVR1004H-4P
Shop VIGI by TP-Link

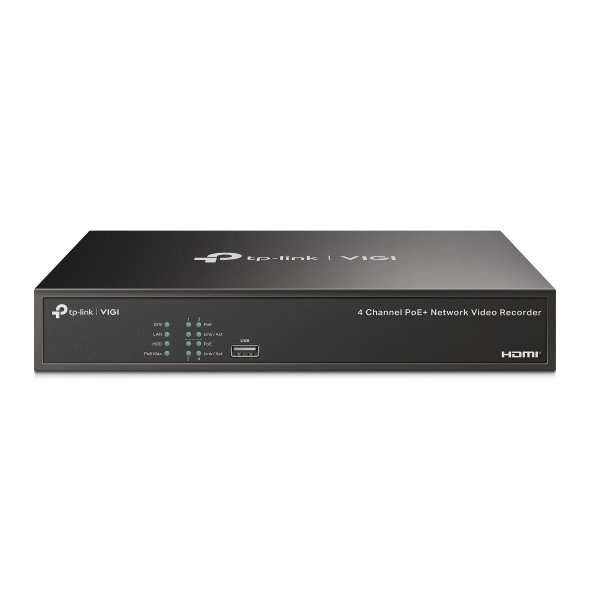

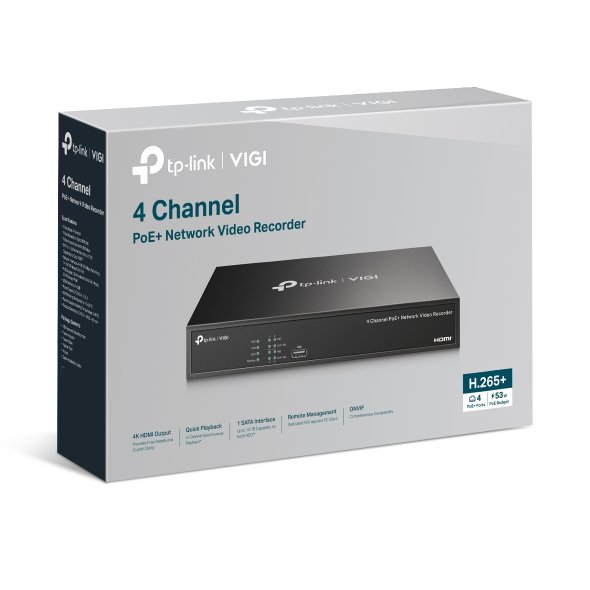

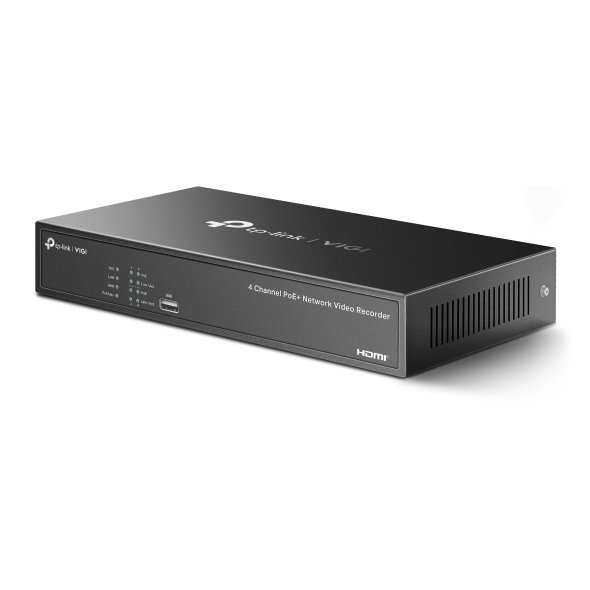

TP‑Link VIGI NVR1004H‑4P is a 4‑channel PoE+ network video recorder featuring 4K HDMI video output, a 16 MP decoding capacity, available @ IC Plus
MPN:
VIGI NVR1004H-4P
EAN/UPC:
4897098688755'
Warranty:
Warranty TBC - Contact Us for Confirmation
.png)
The VIGI network video recorder coordinates with camera systems to help you view, store, and play back videos
Features:
- 4-Channel Live View and 4K HDMI Video Output
- 4× 10/100 Mbps PoE+ Ports with 53 W PoE Budget
- Up to 8-ch @ 2MP (25fps) / 4-ch @ 4MP (25fps) Decoding Capability
- 4-Channel Synchronous Playback†
- 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
- 1× SATA Interface and 1 Up to 10 TB*
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring
Plug & Play.
Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
24/7 Continuous Recording
Stores up to 10 TB of footage from managed cameras to secure your data for quick, convenient access.
Remote Monitoring
The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
80 Mbps Video Access Bandwidth
High video access bandwidth ensures your NVR manages cameras with high resolutions. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to four HD cameras.
| Total Power over Ethernet (PoE) budget | 53 W | Audio RCA outputs | 1 |
|---|---|---|---|
| Audio RCA inputs | 1 | HDMI output | Yes |
| Resolution at capture speed | 1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps | Alarm output channels | 1 |
| Alarm input channels | 4 | VGA (D-Sub) output ports | 1 |
| HDD interface | SATA | Maximum storage capacity | 10 TB |
| HDD capacity | 0 GB | Output bandwidth | 60 Mbit/s |
| Input bandwidth | 80 Mbit/s | Supported resolutions | 3840x2160,1920x1080, 1680x1050, 1440x900, 1280x1024, 1024x768, 1280x720 |
| Video recording modes | 720p, 1080p, 2160p | Video input channels | 4 channels |
| Product colour | Black | Output current | 1.31 A |
| Output voltage | 53.5 V | Supported network protocols | TCP/IP, DHCP, DNS, NTP, UPnP |
| Power consumption (typical) | 4.25 W | USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 | Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No | Video formats supported | H.264, H.264+, H.265, H.265+ |
| Maximum resolution | 3840 x 2160 pixels | LED indicators | Yes |
| Height | 45 mm | Depth | 148.2 mm |
| Width | 246.2 mm | Operating temperature (T-T) | -10 - 55 °C |
