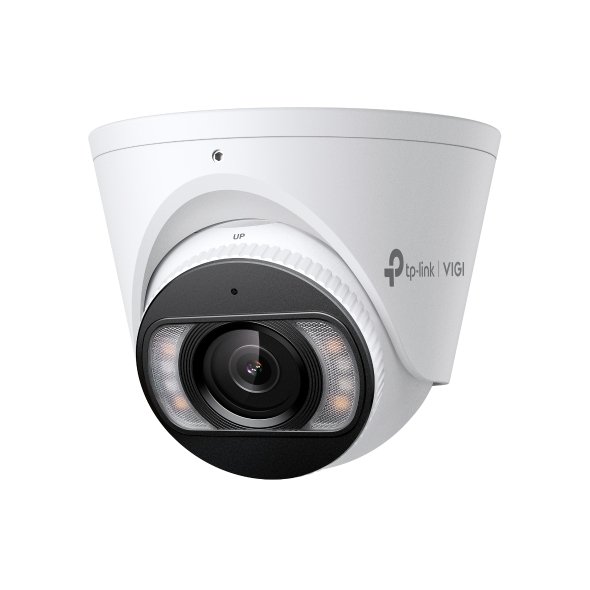

VIGI 5MP Full-Color Turret Network Camera

SKU: VIGI-InSight-S455-2.8mm
VIGI by TP-Link Shop VIGI by TP-Link

The TP-Link InSight S455 is a powerful 5 MP network turret camera offering 24-hour full-colour imaging, advanced people & vehicle analytics and much more.

MPN: InSight S455(2.8mm)
EAN/UPC: 1210002604468'
Warranty: Warranty TBC - Contact Us for Confirmation





Features:

  • 5MP Super-High Definition and 24h Full-Color
  • People & Vehicle Analytics
  • Human & Vehicle Classification
  • Smart Detection
  • Smart Video Enhancement Technology
  • Active Defense and Two-Way Audio

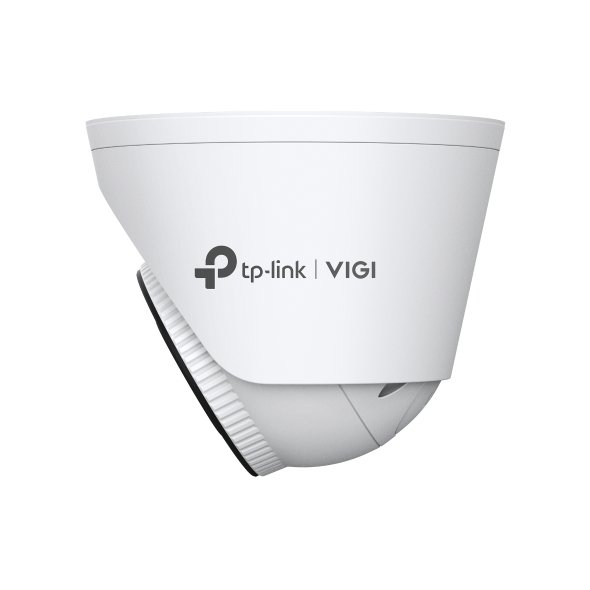

  • IP67 Waterproof
  • H.265+ Compression Technology


People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

Human & Vehicle Classification
Intelligently distinguishes humans and vehicles from other objects, so you receive more accurate event notifications

Smart Detection
Smart Detection is an advanced video analytics technology that enhances surveillance by automatically identifying specific movements and events within a monitored area. It includes features such as Line-Crossing Detection and Intrusion Detection to alert when boundaries are crossed or restricted zones are entered, Abandoned Object Detection and Object Removal Detection to identify unattended or missing items, and Region Entering and Region Exiting Detection to monitor movements in and out of designated areas. Additionally, Scene Change Detection recognizes tampering or sudden environmental changes, while Loitering Detection identifies suspicious lingering behavior. Together, these intelligent functions improve security accuracy, reduce false alarms, and enable proactive monitoring

Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

IP address filtering Yes Alert notification type Push notification
Built-in siren Yes Number of microphones 1
Audio input channels 1.0 channels Video recording Yes
Video compression formats H.264, H.264+, H.265, H.265+ Fixed focus Yes
Recognize distance 13 m Lens viewing angle, diagonal 134°
Remote viewing Yes Password protection Yes
Mirror Yes Housing material Metal
Maximum operating distance 64 m Cloud-managed Yes
Motion sensor Yes Weight 480 g
Web-based management Yes Screws included Yes
Mounting kit Yes Power consumption (max) 11 W
Supported network protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP Tilt angle range 0 - 90°
Observe distance 27 m Length 111 mm
Power consumption (Power over Ethernet (PoE)) 12 W Web browser Yes
Bit rate range 0 - 64 Kbit/s Sample rate 8 kHz
Digital Wide Dynamic Range (DWDR) Yes Highlight Compensation (HLC) Yes
Back Light Compensation (BLC) Yes Bit rate Main Stream
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR) Identify distance 6 m
Supported graphics resolutions 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2688 x 1520, 2880 x 1620 Detect distance 64 m
Camera shutter speed 1/3 to 1/10000 Minimum illumination 0 lx
Dynamic range 120 dB Infrared (IR) cut-off filter Yes
Wide Dynamic Range (WDR) Yes HTTPS encryption Yes
Image quality adjustment Brightness, Contrast, Mirror, Saturation, Sharpness Progressive scan Yes
Drilling template included Yes Protection features Waterproof
Audio system 2-way Built-in speaker(s) Yes
Total megapixels 5 MP Maximum resolution 2880 x 1620 pixels
LED type IR/White Night vision Yes
Fixed focal length 2.8 mm Maximum aperture number 1.6
Optical sensor size 25.4 / 2.7 mm (1 / 2.7") Weatherproof Yes
International Protection (IP) code IP67 Built-in microphone Yes
Form factor Turret Mounting type Ceiling
Day/night mode Yes Connectivity technology Wired
Placement supported Outdoor Package type Box
Height 83.7 mm Width 111 mm
Operating temperature (T-T) -30 - 60 °C Operating relative humidity (H-H) 0 - 95%
Product colour White Power source type DC, PoE
Audio output channels 1.0 channels Audio formats supported G.711 A-law
Sensor type CMOS Live view Yes
Manual Yes Lens viewing angle, vertical 58.8°
Lens viewing angle, horizontal 111.4° Number of cameras 1
Storage relative humidity (H-H) 0 - 95% Storage temperature (T-T) -40 - 60 °C
DC output voltage 12 Type IP security camera
Reset button Yes Video motion detection Yes
DC-in jack Yes Ethernet LAN (RJ-45) ports 1
Maximum memory card size 512 GB Compatible memory cards MicroSD (TransFlash)
Networking standards IEEE 802.3af, IEEE 802.3at Bluetooth No
Wi-Fi No Ethernet LAN Yes
