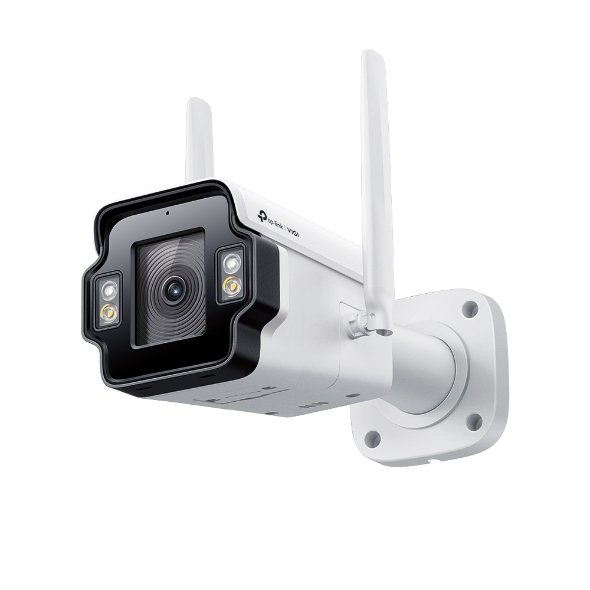

VIGI 4MP Outdoor Full-Color 4G Bullet Network Camera

SKU: VIGI-Insight-S345-4G-4mm
VIGI by TP-Link Shop VIGI by TP-Link

TP-Link InSight S345-4G is a 4 MP outdoor full-colour 4G bullet network camera with built-in 4G mobile connectivity, features include Smart detection & more

MPN: Insight S345-4G(4mm)
EAN/UPC: 1210002619516'
Warranty: Warranty TBC - Contact Us for Confirmation





Features:

  • 4MP Super-High Definition and 24h Full-Color
  • 4G Mobile Networking*
  • 3 LAN Ports for Downstream Devices
  • Human & Vehicle Classification
  • Smart Detection
  • Smart Video Enhancement Technology
  • Active Defense and Two-Way Audio
  • H.265+ Compression Technology
  • IP66 Weatherproof
  • 4G and 3 LAN Ports, Hassle-free Deployment
  • 4MP Outdoor Full-Color 4G Bullet Network Camera

3 LAN Ports Meet Minimal Deployment Effort
InSight S345-4G offers industry-first three LAN ports, enabling simultaneous connectivity for up to three devices as you need. It is ideal for coupling with solar power systems to eliminate additional wiring deployments.

Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.

LightPro Night Vision Technology
The VIGI LightPro Night Vision Technology intelligently switches between IR night vision and full-color night vision by detecting people or vehicles. This allows the camera to capture clearer and more critical details with the white light on, and to reduce light pollution and energy consumption with the IR light on at most time, effectively adapting to a broader range of scenarios.

Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.

Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
Type IP security camera Product colour White
Operating relative humidity (H-H) 0 - 95% Operating temperature (T-T) -30 - 60 °C
Width 122 mm Height 101 mm
Placement supported Outdoor Connectivity technology Wired
Day/night mode Yes Mounting type Wall
Form factor Bullet Protection features Waterproof
International Protection (IP) code IP66 Weatherproof Yes
Optical sensor size 25.4 / 2.7 mm (1 / 2.7") Maximum aperture number 1.6
Fixed focal length 4 mm Night vision Yes
LED type IR/White Maximum resolution 2688 x 1520 pixels
Total megapixels 4 MP Built-in speaker(s) Yes
Audio system 2-way Built-in microphone Yes
Ethernet LAN Yes Wi-Fi No
Bluetooth No Compatible memory cards MicroSD (TransFlash)
Maximum memory card size 512 GB Ethernet LAN (RJ-45) ports 3
DC-in jack Yes Video motion detection Yes
Reset button Yes Power source type DC
DC output voltage 12 Storage temperature (T-T) -40 - 60 °C
Storage relative humidity (H-H) 0 - 95% Number of cameras 1
Lens viewing angle, horizontal 80.4° Lens viewing angle, vertical 41.8°
Manual Yes Live view Yes
Sensor type CMOS Audio formats supported G.711 A-law
Audio output channels 1.0 channels Supported graphics resolutions 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Tilt angle range 0 - 90° Antenna type External
Supported network protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP Power consumption (max) 9.7 W
Mounting kit Yes Screws included Yes

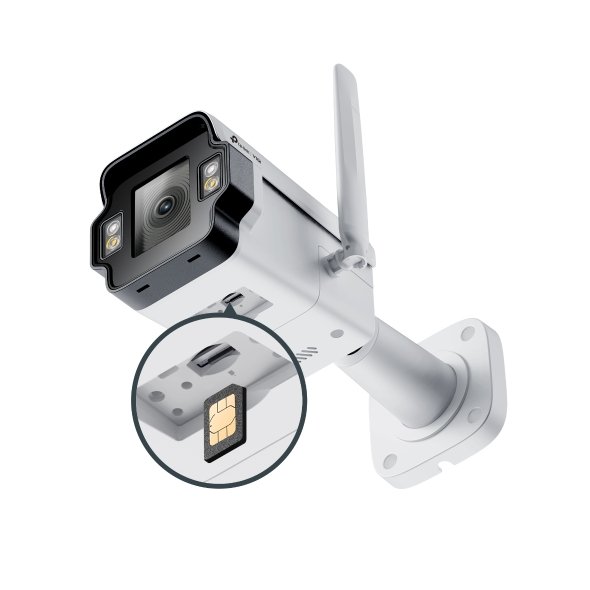

SIM card slot Yes Antennas quantity 2
Web-based management Yes Weight 1.09 kg
Motion sensor Yes Cloud-managed Yes
Mobile network generation 4G 4G standard LTE-TDD & LTE-FDD
SIM card type NanoSIM Maximum operating distance 80 m
Housing material Metal IP address filtering Yes
Password protection Yes Remote viewing Yes
Lens viewing angle, diagonal 98.7° Recognize distance 16 m
Fixed focus Yes Video compression formats H.264, H.264+, H.265, H.265+
Video recording Yes Audio input channels 1.0 channels
Number of microphones 1 Built-in siren Yes
Alert notification type Push notification Mirror Yes
Drilling template included Yes Progressive scan Yes
Image quality adjustment Brightness, Contrast, Mirror, Saturation, Sharpness HTTPS encryption Yes
Wide Dynamic Range (WDR) Yes Infrared (IR) cut-off filter Yes
Dynamic range 120 dB Minimum illumination 0 lx
Camera shutter speed 1/3 to 1/10000 Detect distance 80 m
Observe distance 33 m Identify distance 8 m
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR) Bit rate Main Stream
Back Light Compensation (BLC) Yes Highlight Compensation (HLC) Yes
Digital Wide Dynamic Range (DWDR) Yes Sample rate 8 kHz
Bit rate range 0 - 64 Kbit/s Web browser Yes
Power consumption (Power over Ethernet (PoE)) 10.7 W Length 256 mm
Detection distance 120 m Human and vehicle targets classification Yes
Digest authentication Yes
