SKU: VIGI-InSight-S245-2.8mm
Shop VIGI by TP-Link

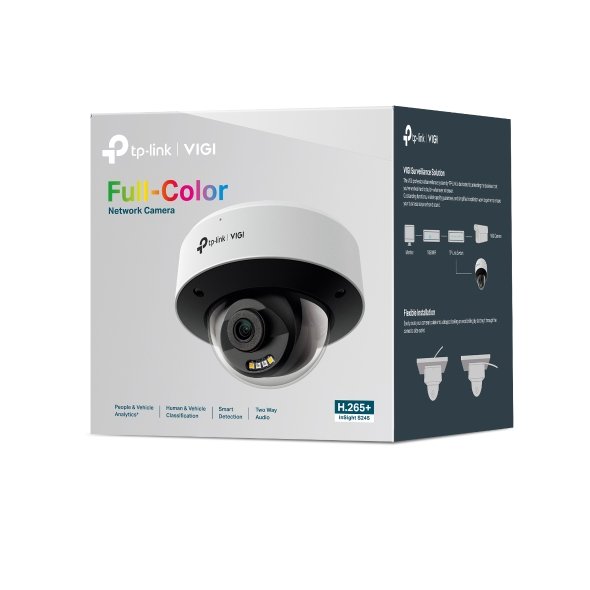

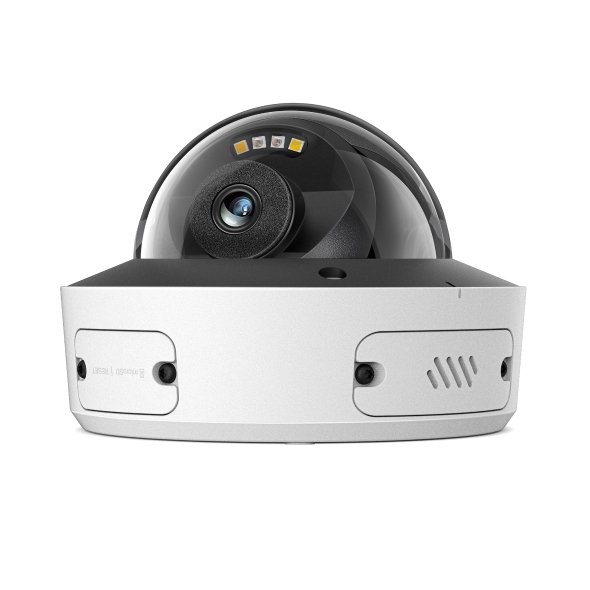

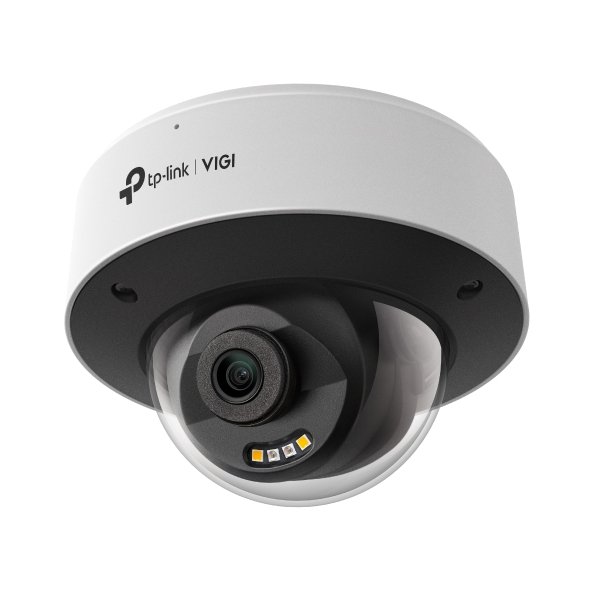

TP‑Link InSight S245 is a 4 MP full‑colour dome network camera featuring 24‑hour full‑colour imaging, advanced people and vehicle analytics & many more
MPN:
InSight S245(2.8mm)
EAN/UPC:
1210002619530'
Warranty:
Warranty TBC - Contact Us for Confirmation
Register/Login to View Price
.png)
Features:
- 4MP Super-High Definition and 24h Full-Color
- People & Vehicle Analytics†
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- IP67 Waterproof and IK10 Vandal-Proof
- H.265+ Compression Technology
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
| Password protection | Yes | Progressive scan | Yes |
|---|---|---|---|
| Mirror | Yes | Alert notification type | Push notification |
| Built-in siren | Yes | Number of microphones | 1 |
| Audio input channels | 1.0 channels | Video recording | Yes |
| Video compression formats | H.264, H.264+, H.265, H.265+ | Recognize distance | 13 m |
| Lens viewing angle, diagonal | 133.5° | Remote viewing | Yes |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness | IP address filtering | Yes |
| Housing material | Metal | Maximum operating distance | 64 m |
| Cloud-managed | Yes | Motion sensor | Yes |
| Weight | 620 g | Web-based management | Yes |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP | Tilt angle range | 0 - 75° |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520 | Audio output channels | 1.0 channels |
| Back Light Compensation (BLC) | Yes | Intelligent Video Surveillance (IVS) system features | Abnormal sound detection, Crossing line, Human detection, Intrusion, Line crossing detection, Moving object, Region entrance detection, Region exiting detection, Scene change, Vehicle detection |
| IK code | IK10 | Digest authentication | Yes |
| Human and vehicle targets classification | Yes | Detection distance | 64 m |
| Power consumption (Power over Ethernet (PoE)) | 12.52 W | Web browser | Yes |
| Bit rate range | 0 - 64 Kbit/s | Sample rate | 8 kHz |
| Digital Wide Dynamic Range (DWDR) | Yes | Highlight Compensation (HLC) | Yes |
| Audio formats supported | G.711 A-law | Bit rate | Main Stream |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) | Identify distance | 6 m |
| Observe distance | 27 m | Detect distance | 64 m |
| Camera shutter speed | 1/3 to 1/10000 | Minimum illumination | 0 lx |
| Dynamic range | 120 dB | Infrared (IR) cut-off filter | Yes |
| Wide Dynamic Range (WDR) | Yes | HTTPS encryption | Yes |
| Protection features | Waterproof | Total megapixels | 4 MP |
| Maximum resolution | 2688 x 1520 pixels | LED type | IR/White |
| Night vision | Yes | Fixed focal length | 2.8 mm |
| Maximum aperture number | 1.6 | Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Camera tilt control | Yes | Camera pan control | Yes |
| Weatherproof | Yes | International Protection (IP) code | IP67 |
| Built-in speaker(s) | Yes | Form factor | Dome |
| Mounting type | Ceiling | Day/night mode | Yes |
| Connectivity technology | Wired | Placement supported | Outdoor |
| Height | 89 mm | Depth | 122 mm |
| Width | 122 mm | Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% | Product colour | White |
| Video motion detection | Yes | Sensor type | CMOS |
| Live view | Yes | Manual | Yes |
| Lens viewing angle, vertical | 58.1° | Lens viewing angle, horizontal | 110° |
| Number of cameras | 1 | Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 60 °C | DC output voltage | 12 |
| Power source type | DC, PoE | Reset button | Yes |
| Type | IP security camera | DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 | Maximum memory card size | 512 GB |
| Compatible memory cards | MicroSD (TransFlash) | Networking standards | IEEE 802.3af, IEEE 802.3at |
| Bluetooth | No | Wi-Fi | No |
| Ethernet LAN | Yes | Built-in microphone | Yes |
| Audio system | 2-way |
