SKU: UC-IPC354SB-ADNF40K-I0
Shop Uniview (UNV)
Uniview IPC354SB-ADNF40K-I0 is a 4MP Prime Series fixed IR dome network camera multiple resolution support up to 2688 × 1520@30fps, Available at IC Plus
MPN:
IPC354SB-ADNF40K-I0
Warranty:
Warranty TBC - Contact Us for Confirmation
Register/Login to View Price

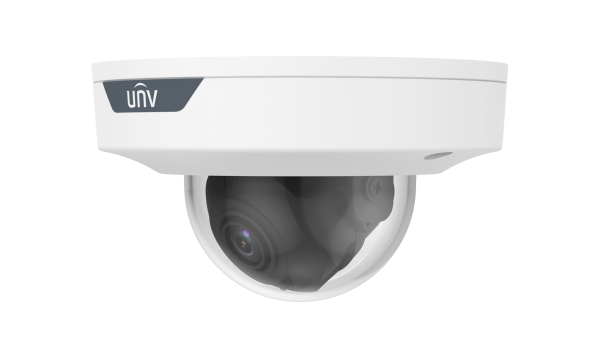

The IPC354SB-ADNF40K-I0 is a 4 MP LightHunter fixed IR dome network camera designed to deliver high quality imaging for security monitoring. It uses a 1 over 2.7 inch CMOS sensor, supports multiple resolution formats up to 2688 by 1520 at 30 frames per second, and provides effective performance in low illumination environments. The camera includes smart intrusion prevention, intelligent people flow analysis, built in microphone support, and infrared illumination up to 30 meters.
The camera operates within a network based management framework through standard IP protocols, supports edge storage through MicroSD, and integrates with various platforms through ONVIF profiles and compatible applications. Its purpose is to provide accurate detection, reliable video capture, and operational stability for professional surveillance environments using PoE power supply and true wide dynamic range technology.
Features:
- High quality image with 4 MP, 1/2.7" CMOS sensor
- 4 MP (2688 × 1520)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
- Ultra 265, H.265, H.264, MJPEG
- Smart intrusion prevention, including cross line, intrusion, enter area, leave area detection
- Intelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehicles
- Intelligent people flow counting and crowd density monitoring
- 120 dB true WDR technology enables clear image in strong light scene
- Supports 9:16 corridor mode
- Built-in mic
- Smart IR, up to 30 m (98.4 ft) IR distance
- MicroSD, up to 512 GB
- Cable-free
- Supports PoE power sup
Low Light Imaging Performance
The LightHunter technology combined with the 1 over 2.7 inch CMOS sensor provides strong performance in low illumination environments. Minimum illumination at 0.003 lux in color mode with F1.6 aperture and automatic gain control ensures detailed imaging where lighting conditions are limited. The 120 dB wide dynamic range further enhances clarity in scenes with significant contrast differences.
The LightHunter technology combined with the 1 over 2.7 inch CMOS sensor provides strong performance in low illumination environments. Minimum illumination at 0.003 lux in color mode with F1.6 aperture and automatic gain control ensures detailed imaging where lighting conditions are limited. The 120 dB wide dynamic range further enhances clarity in scenes with significant contrast differences.
The camera supports Ultra 265, H.265, H.264, and MJPEG compression with triple stream capabilities for bandwidth optimization and flexible deployment. Configurable bit rates ranging from 128 Kbps to 16 Mbps allow precise control over storage and transmission efficiency. Additional functions such as region of interest, privacy masking for up to four areas, and multiple on screen displays contribute to flexible video management.
Comprehensive Intelligent Detection and System Integration
Advanced detection features include motion detection, ultra motion detection, tampering alarms, audio detection, and smart intrusion prevention with accurate human, vehicle, and non motor vehicle classification. Integration is supported through ONVIF profiles S, G, T, and M along with API and SDK compatibility. Security functions such as password protection, HTTPS encryption, authentication protocols, and event logging ensure reliable operation within secure network environments
