SKU: TPL-LS1210GP
Shop TP-Link
The TP-Link LS1210GP is an unmanaged 10-port Gigabit switch featuring 8 PoE+ ports with a total 61 W budget, plus an SFP uplink.
MPN:
LS1210GP
EAN/UPC:
4895252504576'
Warranty:
MFR - Lifetime - Terms Apply
Register/Login to View Price

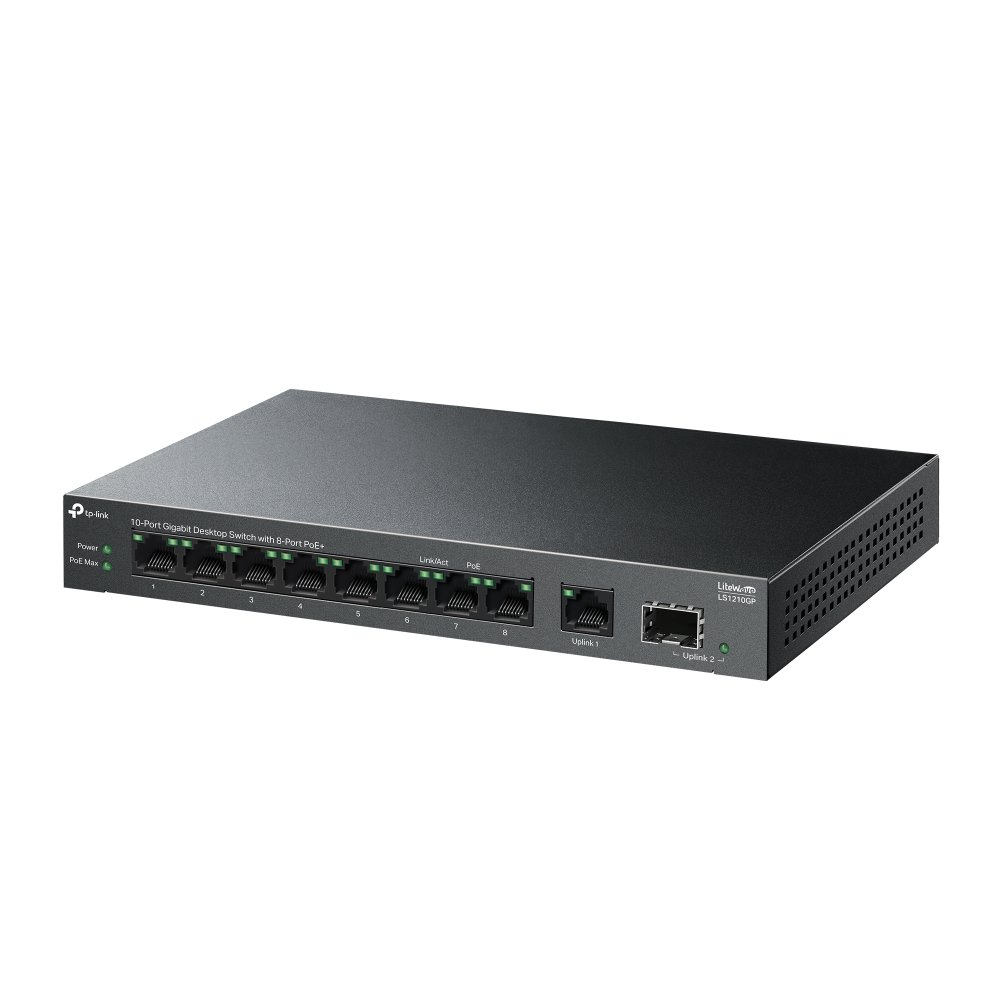

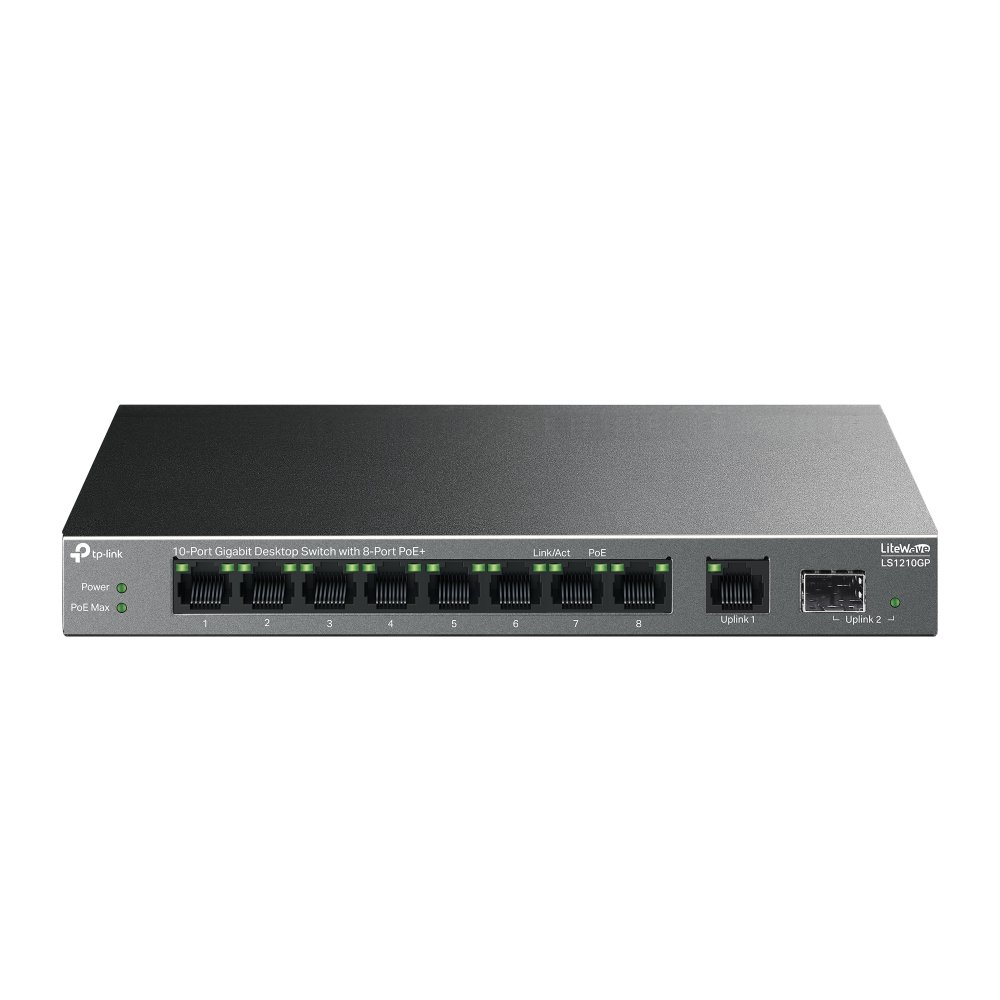

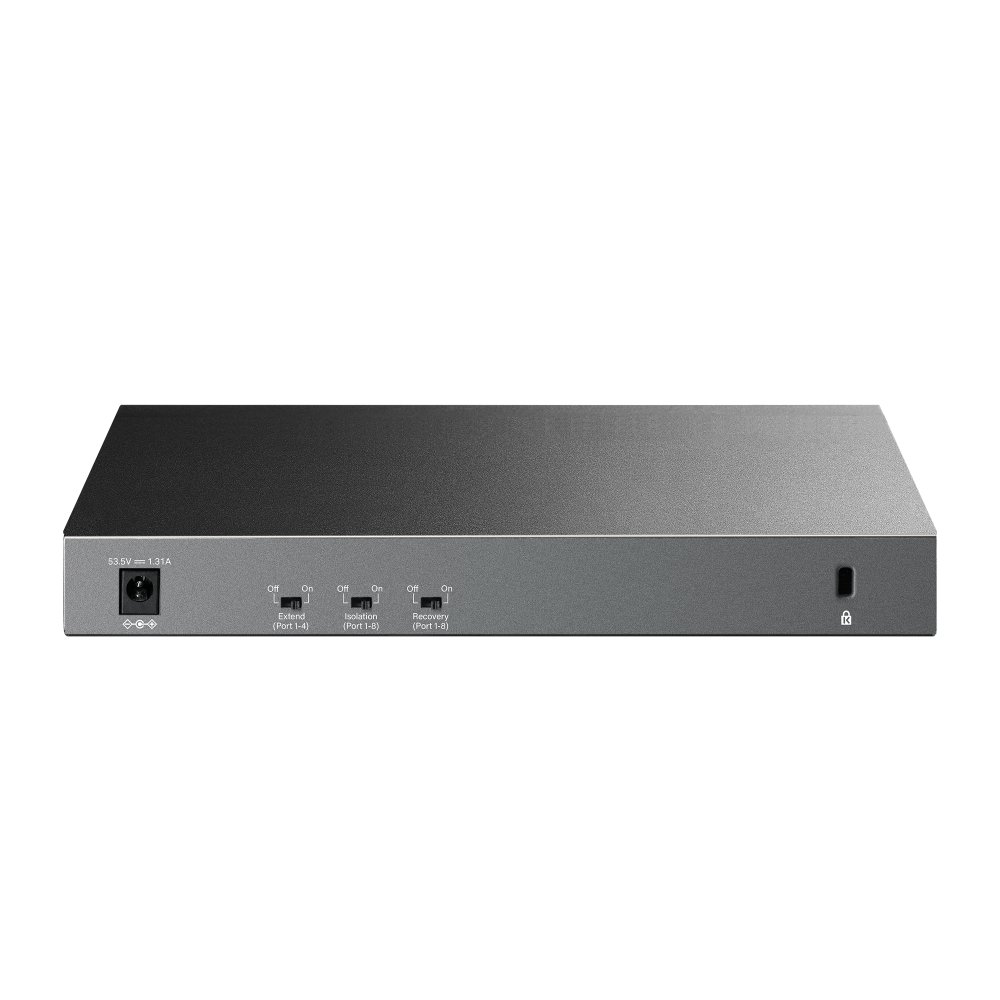

LS1210GP - 10-Port Gigabit Desktop Switch with 8-Port PoE+
The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Features:
- With multiple PoE ports, transfer data and power on one single cable
- Working with IEEE 802.3af /at compliant PDs, expand your network* - 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Up to 250 m data and power transmission under Extend Mode** specially designed for surveillance system
- Isolation Mode (for LS109P&LS1210GP only) allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and play, no configuration and installation required
Full Gigabit Ports
9× gigabit auto-negotiation RJ45 Ethernet ports and 1× gigabit SFP port provide up to 20 Gbps switching capacity.
9× gigabit auto-negotiation RJ45 Ethernet ports and 1× gigabit SFP port provide up to 20 Gbps switching capacity.
61 W PoE Budget
Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*
Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*
Up to 250 m PoE Transmission
With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
PoE Auto Recovery
Automatically reboots your dropped or unresponsive PoE-powered devices.
Automatically reboots your dropped or unresponsive PoE-powered devices.
Traffic Separation for Higher Security
Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storm.
Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storm.
Plug and Play
Simply plug and play for instant connectivity with no configuration required.
Simply plug and play for instant connectivity with no configuration required.
Silent Operation
Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
Reliable Hardware Design
Durable metal casing and desktop/wall-mounting design are well-suited for different environments
Durable metal casing and desktop/wall-mounting design are well-suited for different environments
| SFP module slots quantity | 1 | Flow control support | Yes |
|---|---|---|---|
| Auto MDI/MDI-X | Yes | Auto-negotiation | Yes |
| MAC address table | 4000 entries | Switching capacity | 20 Gbit/s |
| Jumbo frames | 16000 | Power supply included | Yes |
| Power over Ethernet (PoE) | Yes | Heat dissipation | 261.66 BTU/h |
| 10G support | No | Forwarding rate | 14.88 Mpps |
| Store-and-forward | Yes | Power source | DC/PoE |
| User guide | Yes | Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| DC input voltage | 53.5 V | Total Power over Ethernet (PoE) budget | 61 W |
| Power over Ethernet (PoE) power per port | 30 W | Power over Ethernet (PoE) ports quantity | 8 |
| LED indicators | Yes | Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C | AC input voltage | 220 V |
| AC input frequency | 50 Hz | Width | 209 mm |
| Depth | 126 mm | Height | 26 mm |
| Package type | Box | Certification | CE, FCC, RoHS |
| Product colour | Black | Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Storage temperature (T-T) | -40 - 70 °C | Storage relative humidity (H-H) | 5 - 90% |
| Quality of Service (QoS) support | Yes | Power consumption (max) | 76.96 W |
| Switch type | Unmanaged | Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
