SKU: TPL-KIT-EAP615-WALL-v1
Shop Omada by TP-Link
Elevate your Wi-Fi coverage with the EAP615 Wall Access Point. Discover reliable and efficient networking solutions
Warranty:
MFR - Lifetime - Terms Apply
Register/Login to View Price
TPL-KIT-EAP615-WALL-v1
4pcs EAP615-WALL AP's and 1pcs OC200 Hardware Controller
The Omada EAP615-Wall is an AX1800 wall plate WiFi 6 access point designed to deliver high-speed wireless connectivity, simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz for a total of 1775 Mbps, and reliable network coverage. It features four Gigabit Ethernet ports, including one downlink port with PoE pass-through to power connected wired devices, ensuring high-performance connectivity in small to medium-sized spaces.
The EAP615-Wall integrates into the Omada SDN platform, providing centralized cloud management, remote monitoring, and zero-touch provisioning. When paired with the Omada Hardware Controller OC200, it supports scalable deployments, multi-site management, and comprehensive network security management.
Features:
- Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds
- High-Performance Connectivity: Guarantee higher network efficiency and lower latency.
- Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.‡
- Centralized Management: Integrates into Omada SDN for cloud access and remote management.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.†
- Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support
Connectivity and Performance
The EAP615-Wall supports dual-band AX1800 WiFi 6 with 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz. It includes four Gigabit Ethernet ports, with one supporting PoE pass-through, enabling wired devices to receive power over the network. Internal dual-band antennas provide coverage up to 50㎡ and support 16 SSIDs, MU-MIMO, seamless roaming, beamforming, and OFDMA to optimize network efficiency and client capacity.
The EAP615-Wall supports dual-band AX1800 WiFi 6 with 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz. It includes four Gigabit Ethernet ports, with one supporting PoE pass-through, enabling wired devices to receive power over the network. Internal dual-band antennas provide coverage up to 50㎡ and support 16 SSIDs, MU-MIMO, seamless roaming, beamforming, and OFDMA to optimize network efficiency and client capacity.
Centralized Control and Scalability
Integrated into the Omada SDN platform, the EAP615-Wall supports centralized cloud management, zero-touch provisioning, and multi-site monitoring. Managed via the Omada App, Cloud-Based Controller, or OC200 Hardware Controller, it allows batch configuration, firmware upgrades, and unified network monitoring. PoE deployment simplifies installation and supports flexible placement in high-density environments
Integrated into the Omada SDN platform, the EAP615-Wall supports centralized cloud management, zero-touch provisioning, and multi-site monitoring. Managed via the Omada App, Cloud-Based Controller, or OC200 Hardware Controller, it allows batch configuration, firmware upgrades, and unified network monitoring. PoE deployment simplifies installation and supports flexible placement in high-density environments
Security and Resilience
The EAP615-Wall includes robust wireless security with WPA3 encryption, 802.1X authentication, captive portal, MAC filtering, VLAN mapping, and rogue AP detection. Redundancy features are provided through the Omada SDN platform for seamless failover, while the OC200 controller ensures real-time network topology visibility, centralized monitoring, and maintenance tools for enhanced reliability
The EAP615-Wall includes robust wireless security with WPA3 encryption, 802.1X authentication, captive portal, MAC filtering, VLAN mapping, and rogue AP detection. Redundancy features are provided through the Omada SDN platform for seamless failover, while the OC200 controller ensures real-time network topology visibility, centralized monitoring, and maintenance tools for enhanced reliability

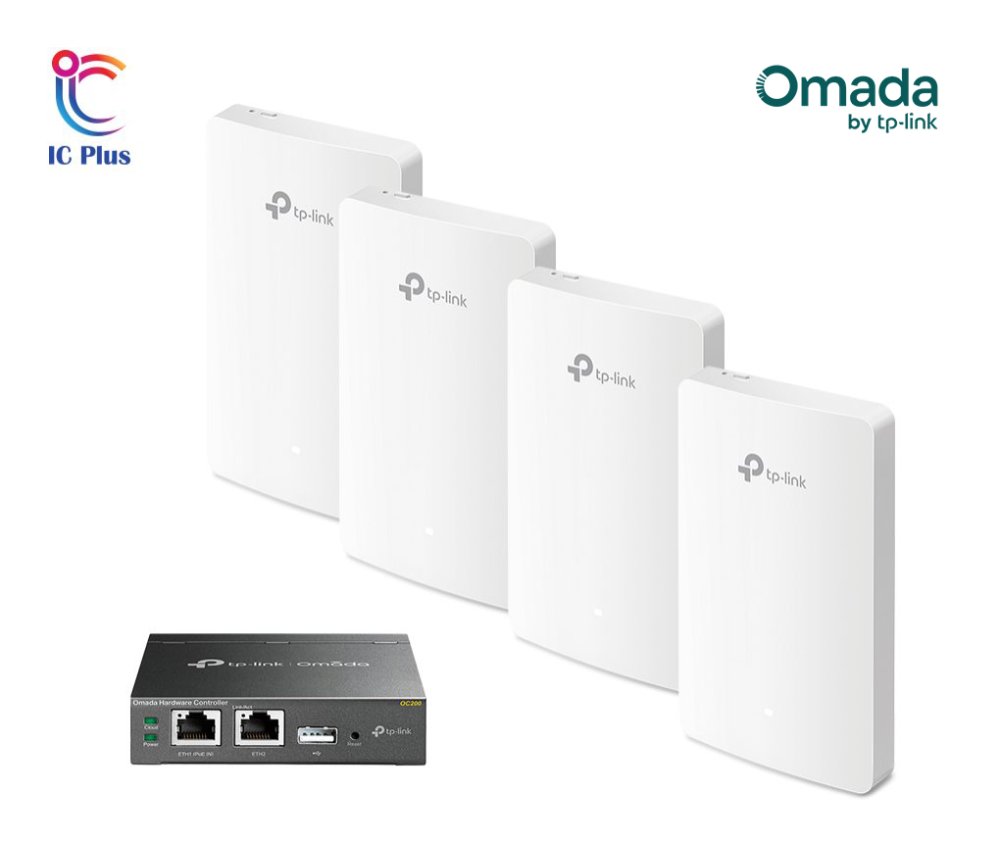

Kit Contents:
4pcs of EAP615-WALL AX1800 Wall Plate WiFi 6 Access Point
1pcs of OC200 Omada Hardware Controller
