SKU: TPL-KIT-EAP610-v1
Shop Omada by TP-Link
Elevate your Wi-Fi experience with the EAP610 Access Point. Discover reliable and efficient networking solutions
Warranty:
MFR - Lifetime - Terms Apply
Register/Login to View Price
TPL-KIT-EAP610-v1
4pcs EAP610 AP's and 1pcs OC200 Hardware Controller
The Omada AX1800 Ceiling Mount WiFi 6 Access Point EAP610 and Omada Hardware Controller OC200 kit is designed for high-speed wireless connectivity and centralized network management. The EAP610 provides ultra-fast WiFi 6 speeds with simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz bands, delivering a total of 1775 Mbps for connected devices. The OC200 hardware controller enables management of multiple Omada devices, ensuring consistent network performance and reliable coverage across deployments.
This kit functions within the Omada SDN platform to provide centralized monitoring, configuration, and security for the network. The OC200 supports management of up to 100 Omada access points, 10 Omada routers, and up to 20 Omada switches, with optional DeltaStream GPON OLT integration. Both devices support local and cloud-based control through the Omada app or web UI, enabling seamless administration and integration across multiple sites.
Features:
- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.†
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
- Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
- PoE+ Powered: Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations.
- Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
- Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies
Connectivity and Performance
The EAP610 provides dual-band WiFi 6 connectivity with speeds up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, supporting over 250 concurrent clients. It features 1 Gigabit Ethernet port for wired connections, internal omnidirectional antennas with 4 dBi gain for 2.4 GHz and 5 dBi gain for 5 GHz, and multiple wireless standards including IEEE 802.11ax/ac/n/g/b/a. PoE+ and DC power options provide installation flexibility, while advanced functions such as MU-MIMO, beamforming, OFDMA, and load balancing optimize throughput and efficiency.
The EAP610 provides dual-band WiFi 6 connectivity with speeds up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, supporting over 250 concurrent clients. It features 1 Gigabit Ethernet port for wired connections, internal omnidirectional antennas with 4 dBi gain for 2.4 GHz and 5 dBi gain for 5 GHz, and multiple wireless standards including IEEE 802.11ax/ac/n/g/b/a. PoE+ and DC power options provide installation flexibility, while advanced functions such as MU-MIMO, beamforming, OFDMA, and load balancing optimize throughput and efficiency.
Centralized Control and Scalability
The OC200 hardware controller integrates with the Omada SDN platform to enable centralized management for large-scale networks. It allows deployment of up to 100 Omada access points, 10 Omada routers, and 20 switches, with multi-site support and real-time network topology visualization. Zero-touch provisioning, batch configuration, and Omada Mesh support ensure fast deployment and scalability. Devices can be monitored and controlled locally or via the Omada cloud, with an intuitive dashboard for network monitoring and maintenance
The OC200 hardware controller integrates with the Omada SDN platform to enable centralized management for large-scale networks. It allows deployment of up to 100 Omada access points, 10 Omada routers, and 20 switches, with multi-site support and real-time network topology visualization. Zero-touch provisioning, batch configuration, and Omada Mesh support ensure fast deployment and scalability. Devices can be monitored and controlled locally or via the Omada cloud, with an intuitive dashboard for network monitoring and maintenance
Security and Resilience
The system provides robust network security with support for WPA3, WPA2/WPA-Personal and Enterprise, captive portal authentication, 802.1X, access control, rogue AP detection, and wireless isolation. Redundancy and reliability are enhanced through failover support, PoE-powered deployments, and hardware design optimized for long-term operation. The OC200 controller provides stable, on-premises management with real-time monitoring, email alerts, and backup capabilities through a USB 2.0 port, ensuring resilience and continuous operation across the network.
The system provides robust network security with support for WPA3, WPA2/WPA-Personal and Enterprise, captive portal authentication, 802.1X, access control, rogue AP detection, and wireless isolation. Redundancy and reliability are enhanced through failover support, PoE-powered deployments, and hardware design optimized for long-term operation. The OC200 controller provides stable, on-premises management with real-time monitoring, email alerts, and backup capabilities through a USB 2.0 port, ensuring resilience and continuous operation across the network.

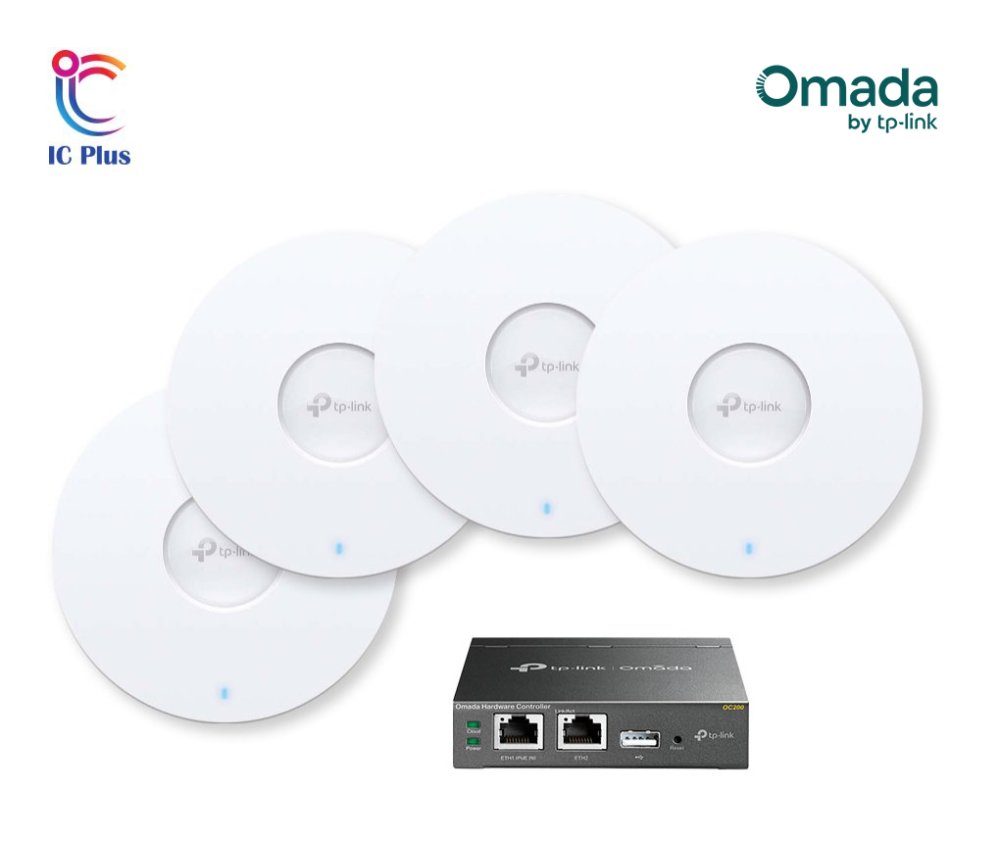

Kit Contents:
4pcs of EAP610 AX1800 Wireless Dual Band Ceiling Mount Access Point
1pcs of OC200 Omada Hardware Controller
