The Omada EAP610-Outdoor AX1800 Wi-Fi 6 Access Point is engineered for both indoor and outdoor wireless deployments, delivering combined dual-band throughput of up to 1.8 Gbps. Utilising Wi-Fi 6 technology, the access point supports advanced wireless features including OFDMA and MU-MIMO, enabling efficient communication with multiple connected devices while reducing latency and improving network capacity. Each access point incorporates a Gigabit Ethernet interface with PoE support, high-power amplifiers, and professional-grade antennas housed within a rugged IP68 weatherproof enclosure. This kit includes four EAP610-Outdoor access points and one OC200 Hardware Controller.

Operating within the Omada Software Defined Networking platform, the kit provides centralised management through cloud-based or local deployment options. The included OC200 Hardware Controller enables unified configuration, monitoring, firmware management, and policy enforcement across connected Omada devices. Designed for business campuses, hospitality venues, education facilities, warehouses, industrial sites, and large outdoor environments, the solution supports scalable wireless networking with seamless roaming, intelligent monitoring, and simplified administration.

Features

• Superior Wi-Fi 6 Speeds: Delivers dual-band speeds of up to 1.8 Gbps powered by the latest Wi-Fi 6 technology
• Higher Network Efficiency: Enjoy faster speeds on more devices with less lag via OFDMA and MU-MIMO
• Long-Range Coverage: Dedicated high-power amplifier and professional antennas with IP68 weatherproof enclosure
• Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment
• Stay Smooth with Fast Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points
• Centralised Cloud Management: Integrates into Omada SDN for cloud access and remote management

Wi-Fi 6 Performance and Outdoor Connectivity

Each EAP610-Outdoor access point delivers up to 1,201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band using IEEE 802.11ax technology, providing a combined wireless capacity of 1.8 Gbps. Support for OFDMA, MU-MIMO, Beamforming, and high-power amplification improves wireless efficiency and enables simultaneous communication with multiple devices. The access points support more than 250 concurrent client connections and utilise external dual-band antennas rated at 4 dBi on 2.4 GHz and 5 dBi on 5 GHz to maximise coverage and signal quality.

Rugged Deployment and Flexible Installation

Designed for demanding outdoor environments, the EAP610-Outdoor features an IP68-rated weatherproof enclosure that protects against dust, moisture, and harsh environmental conditions. Each unit incorporates a Gigabit Ethernet interface supporting both IEEE 802.3at PoE and Passive PoE, simplifying installation across large sites where local power may not be available. High-power amplifiers and professional antenna design enable extended wireless coverage across open outdoor areas while maintaining stable network performance.

Centralised Omada SDN Management and Scalability

The included OC200 Hardware Controller supports management of up to 100 Omada access points, 10 Omada routers, 20 Omada switches, and selected GPON OLT devices. Administrators can manage the network through cloud access, the Omada mobile application, or the web-based interface. Features such as zero-touch provisioning, batch configuration, automatic device discovery, intelligent monitoring, and centralised firmware management streamline deployment and ongoing administration. Omada Mesh technology further extends wireless coverage through seamless wireless backhaul connectivity between compatible access points.

Security, Roaming and Network Resilience

The solution incorporates multiple authentication mechanisms, captive portal functionality, access control policies, wireless isolation, and rogue access point detection to maintain network security. Fast Roaming technology allows connected users to move between access points without interruption to voice calls, video streams, or active applications. Additional resilience features include load balancing, intelligent client distribution, abnormal event notifications, real-time topology monitoring, and multi-site management capabilities through the OC200 controller, ensuring reliable operation across large and distributed wireless environments.

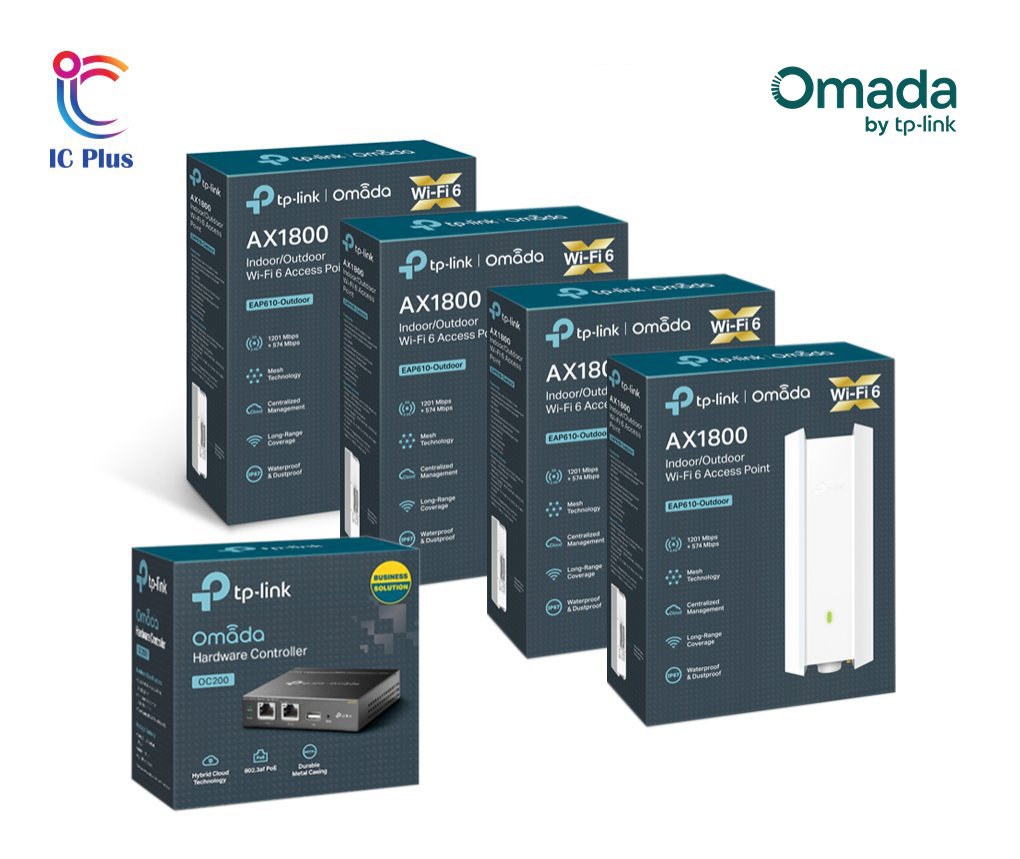

Kit Contents

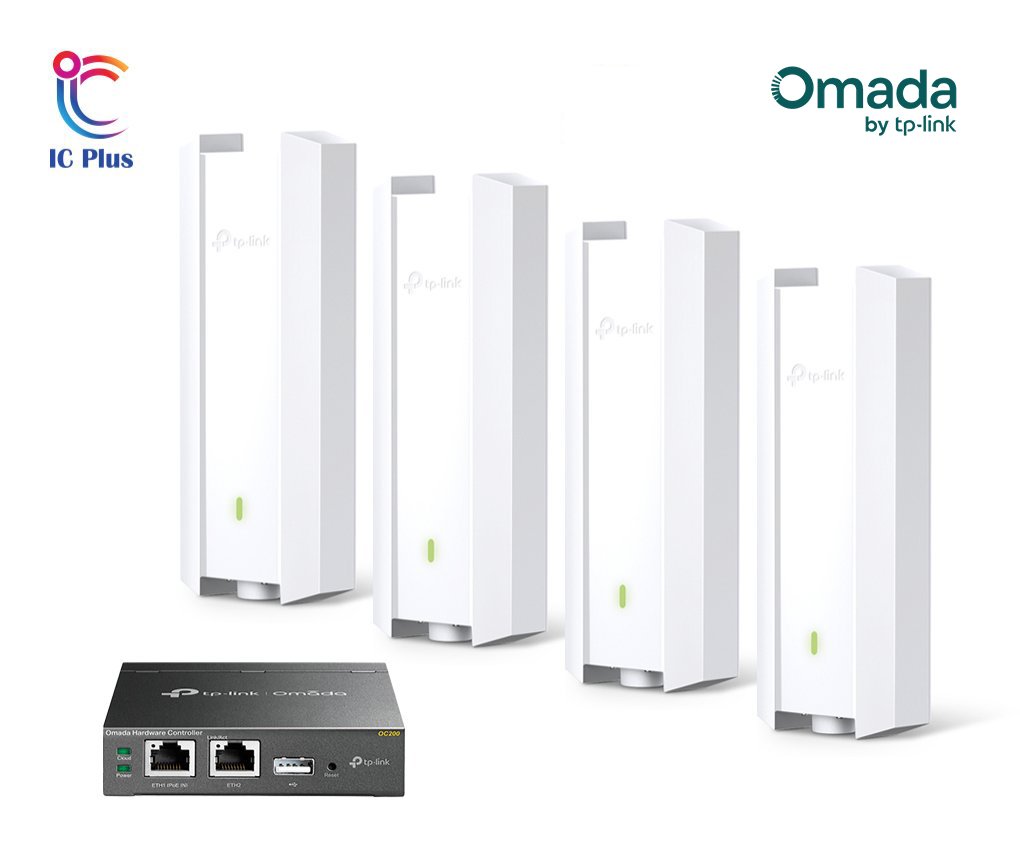

4 × EAP610-OUTDOOR AX1800 Wi-Fi 6 Outdoor Access Points
1 × OC200 Omada Hardware Controller
