SKU: TPL-KIT-EAP235-WALL-v1
Shop Omada by TP-Link
Elevate your indoor Wi-Fi experience with the EAP235 Wall Access Point. Discover reliable and efficient indoor connectivity solutions
Warranty:
MFR - Lifetime - Terms Apply
Register/Login to View Price
TPL-KIT-EAP235-WALL-v1

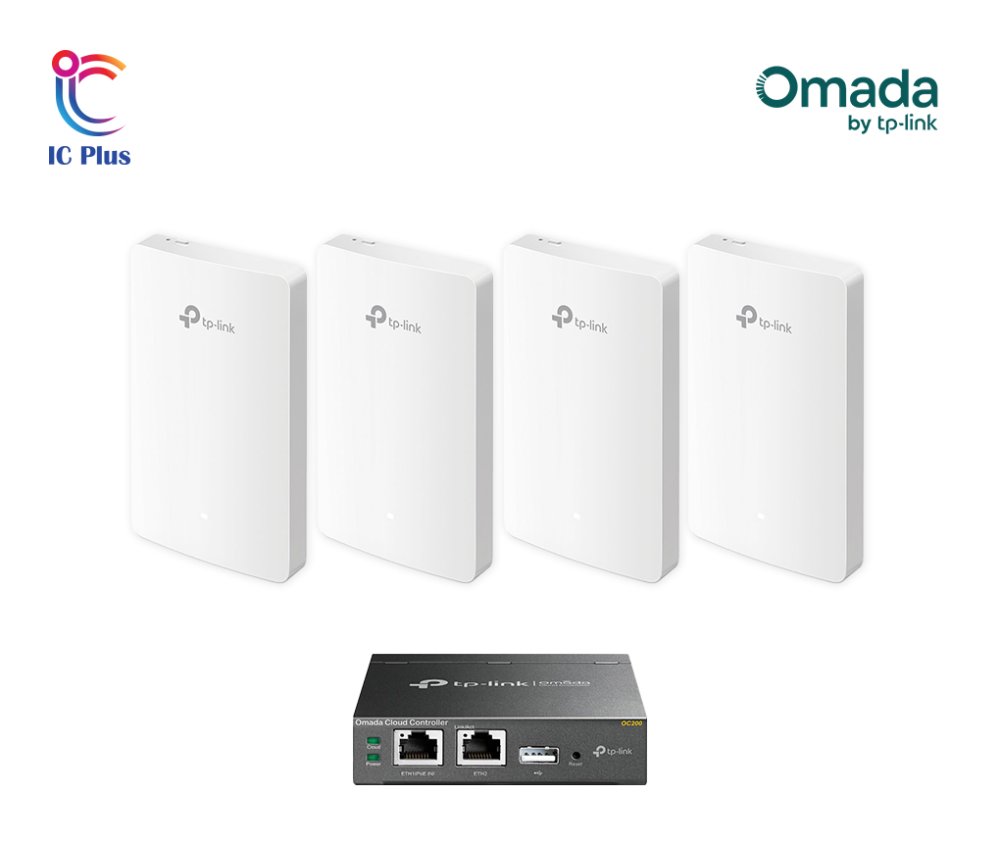

4pcs EAP235-WALL AP's and 1pcs OC200 Hardware Controller
The Omada EAP235-Wall AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point provides dual-band Wi-Fi 5 connectivity with speeds of 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, supporting MU-MIMO for simultaneous device data transmission and in-room Wi-Fi coverage up to 300 ft² (25 ㎡). Each unit includes Gigabit Ethernet ports with PoE input and pass-through, enabling flexible deployment. The kit includes four EAP235-Wall access points and one OC200 Hardware Controller for centralized network management.
The kit integrates with the Omada SDN platform for centralized cloud-based or on-premises management, zero-touch provisioning, and intelligent monitoring. The EAP235-Wall units operate under the OC200 controller to provide scalable deployment, automated configuration, seamless roaming, and secure wireless coverage in multi-room environments.
Features:
- Dual-Band Wi-Fi 5: 867 Mbps on 5 GHz, and 300 Mbps on 2.4 GHz†
- Gigabit Ports with PoE Flexibility: 1× PoE Input port, 1× PoE pass-through port, and 2× RJ45 downlink ports
- Low Congestion: MU-MIMO allows multiple devices to receive data simultaneously, reducing congestion and improving speed.‡
- Complete In-Room Wi-Fi Coverage: Guaranteed strong signals and corner-to-corner Wi-Fi coverage up to 300ft² (25 ㎡).*
- Flexible Deployment and Easy Setup: Supports 802.3af/at PoE for flexible installation with Omada SDN for one-click setup
- Advanced Features: Supports centralized cloud management and Seamless Roaming.△
- More Connections: Supports 200+ concurrent connections
Connectivity and Performance
The EAP235-Wall provides dual-band connectivity with IEEE 802.11a/b/g/n/ac standards, supporting maximum throughput of 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz. Each unit includes one PoE input port, one PoE pass-through port, and two downlink Gigabit Ethernet ports. MU-MIMO and Beamforming technologies improve efficiency for multiple simultaneous device connections, and internal dual-band antennas provide 3 dBi gain on 2.4 GHz and 4 dBi gain on 5 GHz
The EAP235-Wall provides dual-band connectivity with IEEE 802.11a/b/g/n/ac standards, supporting maximum throughput of 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz. Each unit includes one PoE input port, one PoE pass-through port, and two downlink Gigabit Ethernet ports. MU-MIMO and Beamforming technologies improve efficiency for multiple simultaneous device connections, and internal dual-band antennas provide 3 dBi gain on 2.4 GHz and 4 dBi gain on 5 GHz
Centralized Control and Scalability
The OC200 Hardware Controller supports up to 100 Omada access points, 10 routers, 20 switches, and selected GPON OLTs. Centralized management is available through the Omada app, web interface, or cloud-based controller, with features including batch configuration, zero-touch provisioning, and real-time monitoring. The system enables scalable deployment for multi-room environments, supporting Omada Seamless Roaming and efficient in-room coverage.
The OC200 Hardware Controller supports up to 100 Omada access points, 10 routers, 20 switches, and selected GPON OLTs. Centralized management is available through the Omada app, web interface, or cloud-based controller, with features including batch configuration, zero-touch provisioning, and real-time monitoring. The system enables scalable deployment for multi-room environments, supporting Omada Seamless Roaming and efficient in-room coverage.
Security and Resilience
The EAP235-Wall includes multiple authentication methods, captive portal configuration, access control, rogue AP detection, and VLAN mapping to maintain network security. Load balancing, hardware reliability, and failover functions enhance network stability. The OC200 controller provides secure on-premises management, abnormal event alerts, real-time topology monitoring, and multi-site management for resilient operation across all connected devices.
The EAP235-Wall includes multiple authentication methods, captive portal configuration, access control, rogue AP detection, and VLAN mapping to maintain network security. Load balancing, hardware reliability, and failover functions enhance network stability. The OC200 controller provides secure on-premises management, abnormal event alerts, real-time topology monitoring, and multi-site management for resilient operation across all connected devices.
