GNSS ADHESIVE SMA ANTENNA for devices like NTP01

    Categories

    Teltonika GNSS Adhesive SMA Antenna PR1KSG30
    Teltonika

    Share this product on social media

    SKU: TELTONIKA-PR1KSG30
    Teltonika Shop Teltonika

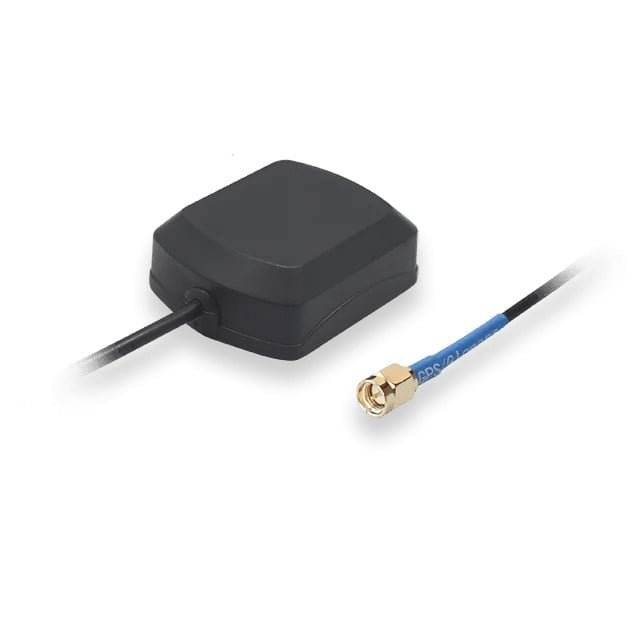

    The Teltonika GNSS Adhesive SMA Antenna (model PR1KSG30 / 003R-00250) is a compact, adhesive-mount GNSS antenna with SMA male connector. Avail at IC Plus

    MPN: PR1KSG30
    Warranty: Warranty TBC - Contact Us for Confirmation
    €8.28 incl. VAT

    QtyAdd to Cart

    Product Description


    GNSS ADHESIVE SMA ANTENNA

    PARAMETER

    Frequency range: 1575 ~ 1602 MHz
    Polarization: RHCP
    Gain: 2.0 dBi
    VSWR: 2.0
    Impedance: 50 Ω
    Axial ratio: 3 dB
    LNA Gain: 26 ± 2 dB
    LNA noise figure">: 1.5 dB
    Supply voltage: 2.2 – 5.0 VDC
    Current consumption">: 5 – 15 mA
    LNA VSWR">: 2.0
    Cable">: RG174, 3000 mm
    Connector type">: SMA Male
    Mounting method">: Adhesive
    Operating temperature">: –40 ~ +85
    Operating relative humidity: 95 %
