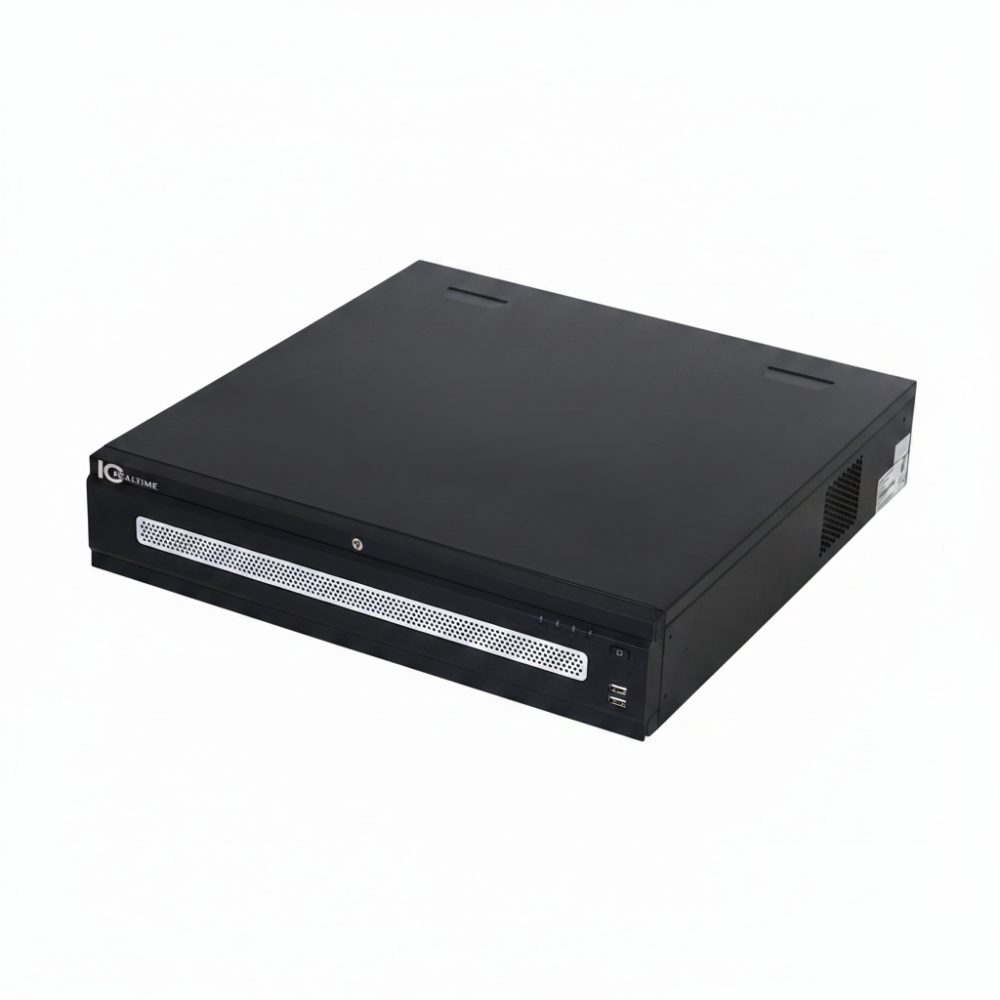

STORM-5s-8HS-64

IC Realtime 64CH 32MP H.265 2U 8xSATA NVR with HotSwap RAID, Advanced AI, and AcuPick Technology

The STORM-5s-8HS-64 represents an advanced evolution in surveillance technology, designed to meet the demanding requirements of modern security systems. This sophisticated 64-channel H.265 Enterprise RAID Network Video Recorder combines powerful processing capabilities with advanced AI integration to deliver comprehensive threat detection and analysis. Powered by an industrial-grade embedded Linux processor, the system efficiently handles resolutions up to 32 megapixels, including 4K video streams, ensuring exceptional clarity in captured footage.

Supporting multiple decoding formats including Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG, the STORM-5s-8HS-64 provides exceptional flexibility for diverse camera configurations. With maximum decoding capabilities of 32 channels at 1080p@30 fps, the system processes high-resolution video streams without degradation. The impressive bandwidth specifications of 1280 Mbps incoming, 1280 Mbps recording, and 1024 Mbps outgoing (with AI disabled) ensure smooth performance even in demanding multi-camera deployments.

What truly distinguishes the STORM-5s-8HS-64 is its comprehensive AI integration at both the recorder and camera levels. The recorder itself provides robust AI capabilities including 8-channel face detection and recognition with support for up to 40 face databases containing 300,000 images, 8-channel video metadata analysis, 8-channel AcuPick technology, 4-channel PPE detection, 32-channel perimeter protection, and 32-channel SMD Plus (Smart Motion Detection Plus). When integrated with AI-enabled cameras, the system expands capabilities to include ANPR (Automatic Number Plate Recognition), stereo analysis, crowd distribution mapping, people counting, heat map generation, and advanced metadata extraction. This layered AI approach enables intelligent threat identification and response without overwhelming system resources.

The STORM-5s-8HS-64 prioritizes data integrity and system reliability through comprehensive security measures and flexible storage options. The system supports RAID configurations (RAID 0/1/5/6/10) to protect against data loss, while N+M cluster support enables mission-critical redundancy. The 8 SATA III ports support individual drives up to 20TB each, providing substantial storage capacity for extended recording periods. Hot-swappable drive bays facilitate seamless maintenance without system downtime.

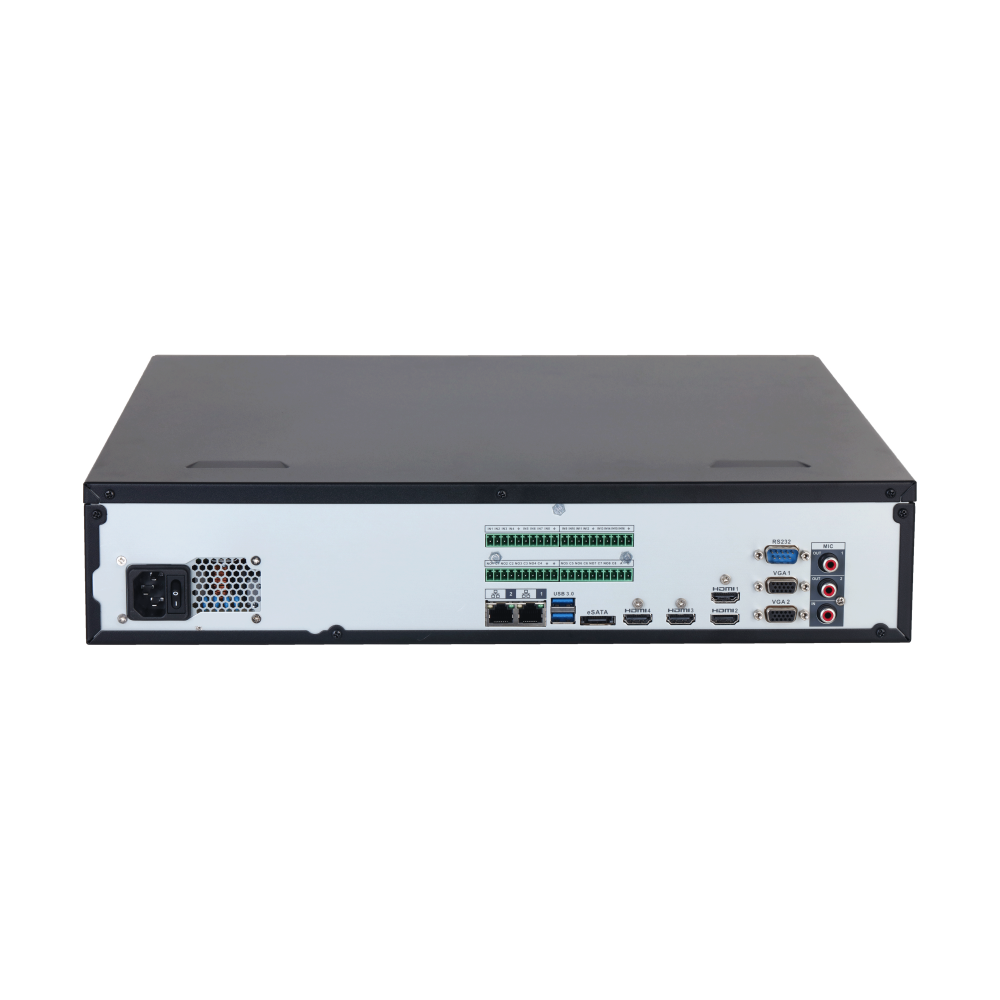

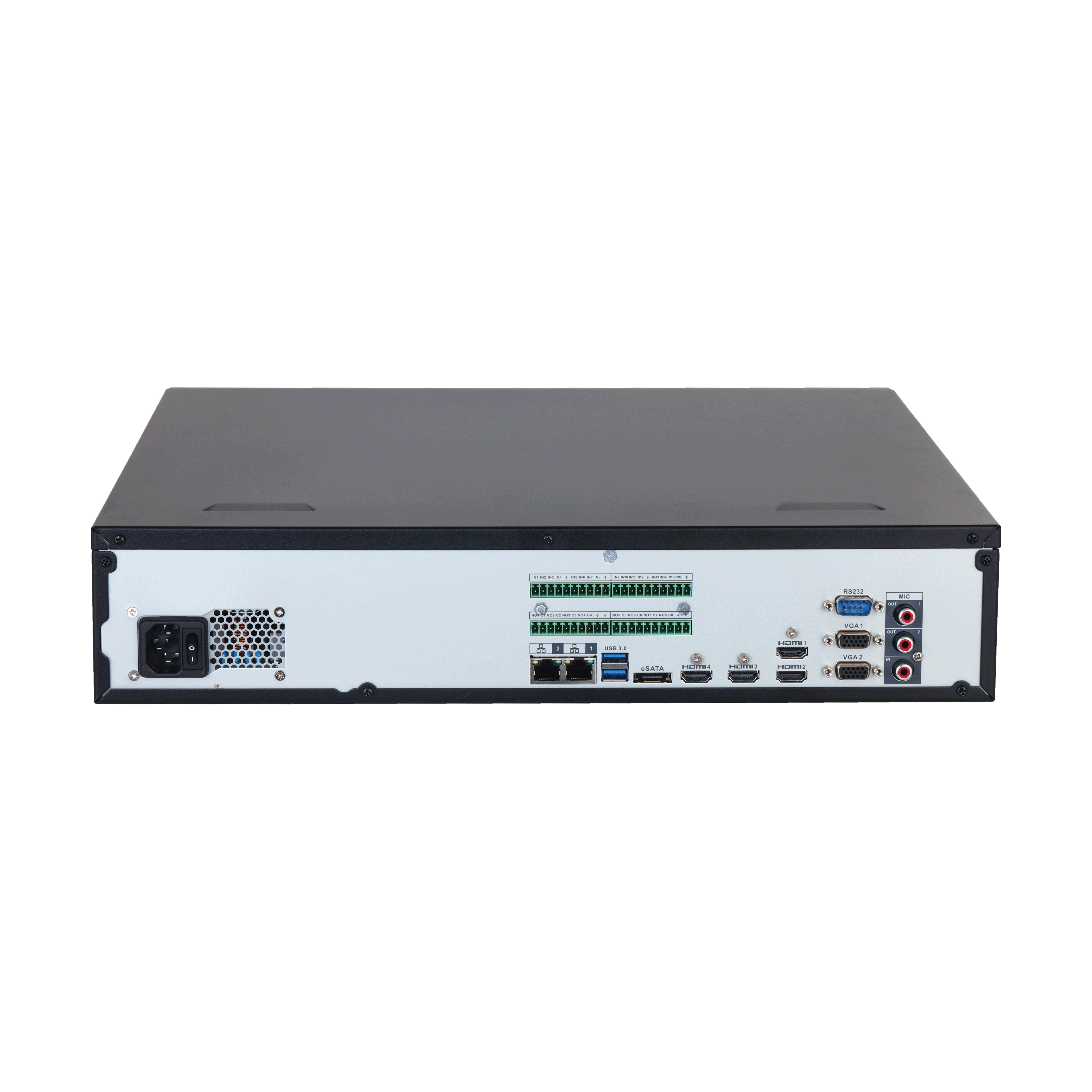

Physical design emphasizes integration and usability. The 2U rack-mountable chassis features 2 x 1GB network ports for flexible connectivity, 16 alarm inputs, 8 relay-based alarm outputs, and comprehensive video output options with 2 HDMI and 2 VGA ports. Audio capabilities include 1 input and 2 output channels via RCA connectors. The drawer-like chassis design allows for convenient HDD hot swapping, while multiple USB ports provide flexible external device connectivity.

The STORM-5s-8HS-64 establishes a new standard in network video recording, combining raw processing power with intelligent AI analytics, robust data protection, and flexible deployment options. AcuPick technology streamlines the identification and tracking of individuals within extensive video archives, enabling rapid response to security events. Whether for retail environments, transportation hubs, critical infrastructure, or enterprise security operations, the STORM-5s-8HS-64 delivers the intelligence and reliability required for effective surveillance and forensic analysis.

FEATURES

RAID 0/1/5/6/10

Flexible RAID configuration options balance performance, capacity, and fault tolerance according to specific deployment requirements. RAID 0 prioritizes performance, RAID 1 provides simple mirroring, RAID 5/6 offer optimal protection with efficient capacity utilization, and RAID 10 combines striping with mirroring for maximum reliability in critical applications.

SMD Plus (Smart Motion Detection Plus)

Advanced motion detection algorithms intelligently categorize motion-triggered events to eliminate false alarms caused by environmental factors including leaves, rain, and lighting changes. Secondary filtering specifically targets human and motor vehicle detection, ensuring security personnel receive only actionable alerts.

Smart H.265+ Compression

Smart H.265+ implements advanced video compression through scene-adaptive encoding, dynamic GOP adjustment, region-of-interest optimization, and intelligent noise reduction. This innovative approach reduces storage requirements and network bandwidth by up to 70% compared to standard H.265, enabling extended recording periods and reduced infrastructure demands.

PPE Detection

Personal Protective Equipment (PPE) detection technology automatically identifies and monitors compliance with required safety equipment including uniforms, hats, and protective gear. The system triggers alerts for compliance violations or missing equipment, ensuring workplace safety standards are maintained and supporting regulatory compliance requirements.

Multi-Output & Display Flexibility

Comprehensive video output options include 2 VGA ports (supporting up to 1920×1080) and 4 HDMI ports supporting resolutions up to 8K (7680×4320) on HDMI3. Simultaneous and heterogeneous display modes enable flexible monitoring layouts with support for 1/4/8/9/16/25/36/64 channel configurations on main displays and up to 36 channels on sub-displays.
