SKU: OMADA-KIT-EAP653-UR-v1
Shop Omada by TP-Link
This Omada kit consists of four EAP653 UR ceiling-mount access points and one OC200 hardware controller. Available at IC Plus
MPN:
EAP653 UR x 4pcs, OC200 x 1pcs
Warranty:
Warranty TBC - Contact Us for Confirmation
Register/Login to View Price
OMADA-KIT-EAP653-UR-v1
4pcs EAP653 UR Ceiling AP's 1pcs OC200 Hardware Controller
The Omada Kit consists of four EAP653 UR AX3000 ceiling-mount Wi-Fi 6 access points and one OC200 hardware controller, designed to deliver high-speed wireless connectivity with extended coverage and enhanced client capacity. Each EAP653 UR access point supports up to 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, utilizing multiple antennas and higher transmit power to ensure ultra-range coverage and reliable performance in high-density environments.
Within the Omada SDN platform, this kit provides centralized management, monitoring, and configuration through the OC200 hardware controller. The controller supports cloud-based and local management, zero-touch provisioning, multi-site administration, and real-time network topology visualization, enabling streamlined deployment, consistent network policies, and enhanced operational security across all connected devices.
Features:
- Ultra-fast WiFi 6 speeds: 2402 Mbps on 5 GHz + 574 Mbps on 2.4 GHz†
- Ultra-range wireless coverage by more antennas with higher transmit power
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc‡
- Advanced Features: Omada Mesh, Seamless Roaming, etc§
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
- Ultra-Slim Design: Φ6.3 in × 1.3 in elegant design brings more agility
- Integrates with the Omada SDN platform for centralized management
Connectivity and Performance

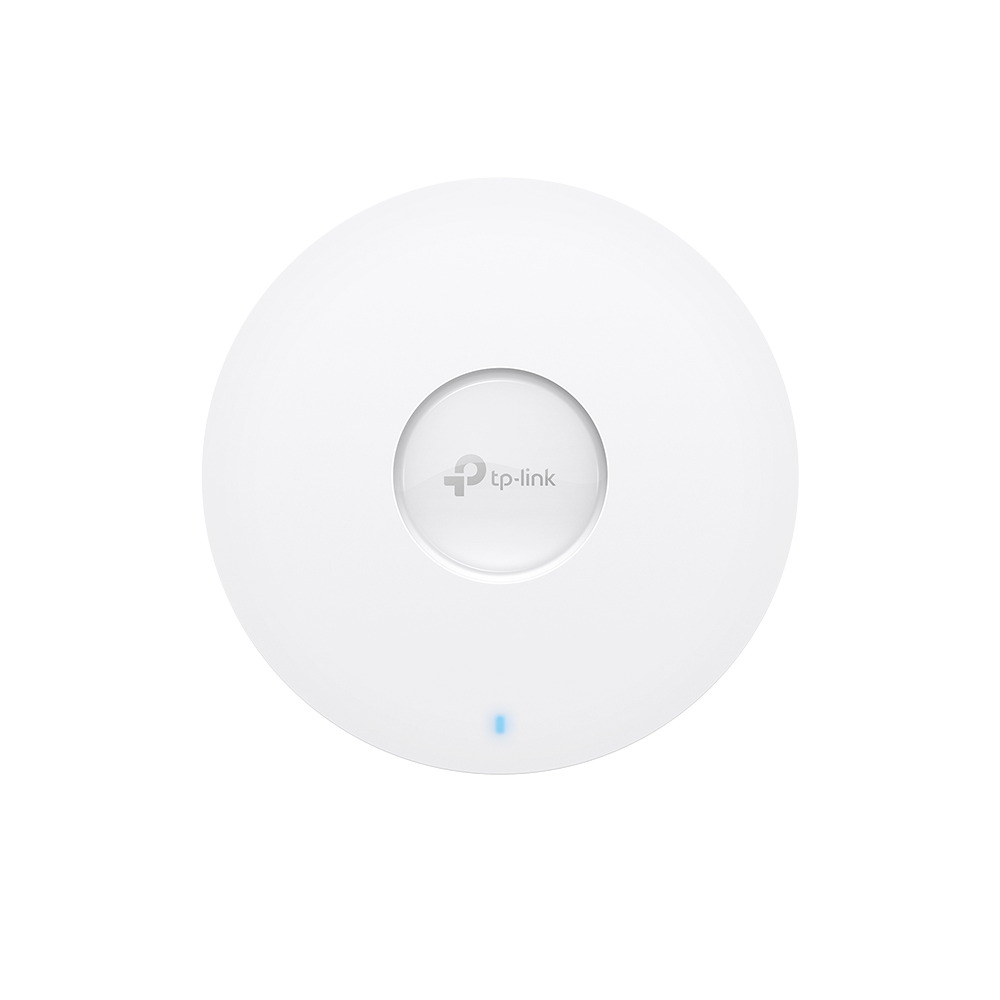

The EAP653 UR access points provide dual-band Wi-Fi 6 connectivity with maximum throughput of 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. Each unit includes a Gigabit PoE+ port supporting 802.3at and passive PoE for high-speed wired connections. Technologies such as OFDMA, MU-MIMO, HE160, 1024-QAM, band steering, load balancing, beamforming, and airtime fairness optimize performance, supporting over 250 concurrent clients while maintaining low latency and consistent throughput.
The EAP653 UR access points provide dual-band Wi-Fi 6 connectivity with maximum throughput of 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. Each unit includes a Gigabit PoE+ port supporting 802.3at and passive PoE for high-speed wired connections. Technologies such as OFDMA, MU-MIMO, HE160, 1024-QAM, band steering, load balancing, beamforming, and airtime fairness optimize performance, supporting over 250 concurrent clients while maintaining low latency and consistent throughput.
Centralized Control and Scalability

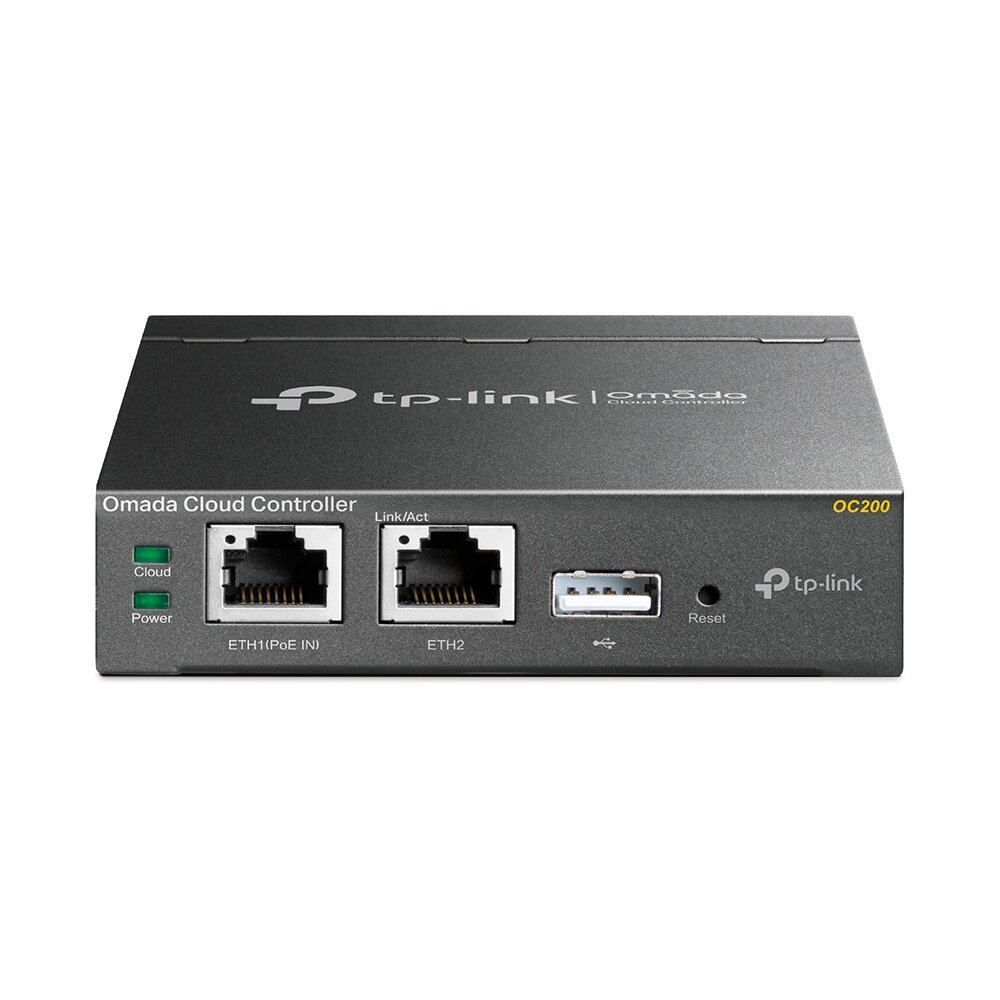

The OC200 hardware controller integrates all four access points into the Omada SDN platform, enabling centralized management through cloud or local interfaces. Features include zero-touch provisioning, multi-site administration, batch configuration, and firmware updates. Omada Mesh functionality allows wireless interconnection between access points to extend coverage, while seamless roaming ensures uninterrupted connectivity as clients move between locations.
The OC200 hardware controller integrates all four access points into the Omada SDN platform, enabling centralized management through cloud or local interfaces. Features include zero-touch provisioning, multi-site administration, batch configuration, and firmware updates. Omada Mesh functionality allows wireless interconnection between access points to extend coverage, while seamless roaming ensures uninterrupted connectivity as clients move between locations.
Security and Resilience
Security mechanisms include WPA3, WPA2, and WPA standards, captive portal authentication, MAC filtering, VLAN mapping, wireless isolation, rogue AP detection, and 802.1X support. The OC200 provides centralized logging, alert notifications, and intelligent network monitoring for proactive issue detection. The access points are engineered for reliable operation under standard environmental conditions, with flexible PoE and DC power options ensuring resilient, continuous network availability.
Security mechanisms include WPA3, WPA2, and WPA standards, captive portal authentication, MAC filtering, VLAN mapping, wireless isolation, rogue AP detection, and 802.1X support. The OC200 provides centralized logging, alert notifications, and intelligent network monitoring for proactive issue detection. The access points are engineered for reliable operation under standard environmental conditions, with flexible PoE and DC power options ensuring resilient, continuous network availability.

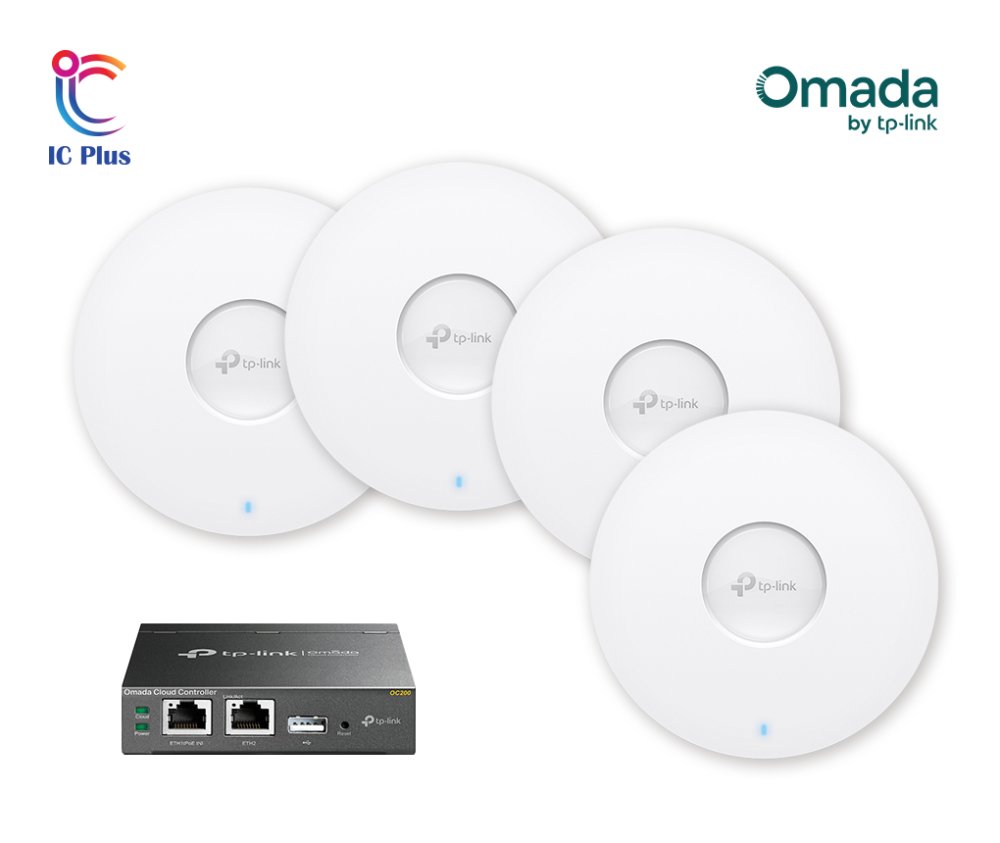

Kit Contents:
4pcs EAP653 UR Ceiling Access Points
1pcs OC200 Hardware Controller
