SKU: IPS-NSW2100-6GT-POE-IN
Shop Uniview (UNV)

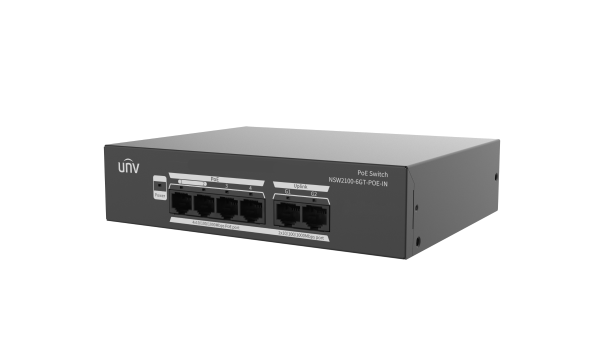

The Uniview NSW2100-6GT-POE-IN is a 6-port Gigabit PoE switch featuring 4 PoE ports and 2 additional Gigabit RJ45 ports available at IC Plus
MPN:
NSW2100-6GT-POE-IN
Warranty:
Warranty TBC - Contact Us for Confirmation
Register/Login to View Price
The NSW2100 6GT POE IN Gigabits PoE Switch is designed to deliver stable gigabit connectivity and IEEE compliant power delivery for network devices. It provides four gigabit PoE ports and two additional gigabit RJ45 ports, supporting reliable data transmission and suitable power output for a range of connected equipment. The switch offers a 12Gbps switching capacity and 8.92Mpps forwarding performance, allowing efficient handling of traffic in small to medium network environments.
Features:
High Power Delivery Capacity
The switch provides up to 65W total PoE capacity with a maximum of 30W per port, compliant with IEEE 802.3af and IEEE 802.3at standards. ModeA and ModeB power options offer compatibility with a wide range of powered devices. The fanless design, metal casing, and support for operating temperatures from 0°C to 45°C contribute to long term operational reliability in professional installations.
Enhanced Network Control and Management Functions
The device offers control features that support network optimization, including full and half duplex modes, auto negotiation, port enabling or disabling, port rate configuration, flow control, and port statistics. It supports two link aggregation groups with up to four ports and allows the configuration of VLANs up to six groups, which increases segmentation and network organization. Additional capabilities include static MAC entries, port isolation, loop detection, and port mirroring for monitoring
Durable Physical Design and Environmental Reliability
The unit features an all metal housing that supports secure installation and long term stability. It operates without cooling fans, reducing noise and potential failure points while maintaining safe temperature ranges from 0 degrees Celsius to 45 degrees Celsius. The device supports operational humidity from 10 percent to 90 percent noncondensing, ensuring reliability in varied indoor environments. The inclusion of clear LED indicators for power and link activity assists in quick status evaluation and troubleshooting
- Supports Web login, and device configuration and management on the Web interface.
- Supports visiting the cloud by scanning the QR code. Allows to view the device status in real time on the app, and remotely restart the PoE power supply.
- Supports PoE power supply ; allows to enable or disable PoE power supply for the powered device; allows up to 250m power supply using a standard network cable.
- Supports the extend mode for up to 250m communication range and 10Mbps auto-negotiation rate.
- Supports port priority. The priority port will be powered first when the PoE power supply is full.
- All metal casing, secure and reliable
High Power Delivery Capacity
The switch provides up to 65W total PoE capacity with a maximum of 30W per port, compliant with IEEE 802.3af and IEEE 802.3at standards. ModeA and ModeB power options offer compatibility with a wide range of powered devices. The fanless design, metal casing, and support for operating temperatures from 0°C to 45°C contribute to long term operational reliability in professional installations.
Enhanced Network Control and Management Functions
The device offers control features that support network optimization, including full and half duplex modes, auto negotiation, port enabling or disabling, port rate configuration, flow control, and port statistics. It supports two link aggregation groups with up to four ports and allows the configuration of VLANs up to six groups, which increases segmentation and network organization. Additional capabilities include static MAC entries, port isolation, loop detection, and port mirroring for monitoring
Durable Physical Design and Environmental Reliability
The unit features an all metal housing that supports secure installation and long term stability. It operates without cooling fans, reducing noise and potential failure points while maintaining safe temperature ranges from 0 degrees Celsius to 45 degrees Celsius. The device supports operational humidity from 10 percent to 90 percent noncondensing, ensuring reliability in varied indoor environments. The inclusion of clear LED indicators for power and link activity assists in quick status evaluation and troubleshooting
