Blake UK - CLASS 1 8-Way FM/DAB/UHF Setback Amplifier

    Categories

    Blake UK BLAAMP28 with 8 F-type outputsBLAAMP28 installed in signal distribution rack showing FM/DAB/UHF input connectionsBlake UK BLAAMP28, dual-input UHF/VHF and full-output 16 dB portBLAAMP28 amplifier with triple-filtering 4G/5G/TETRA and LED status indicators
    Blake UK

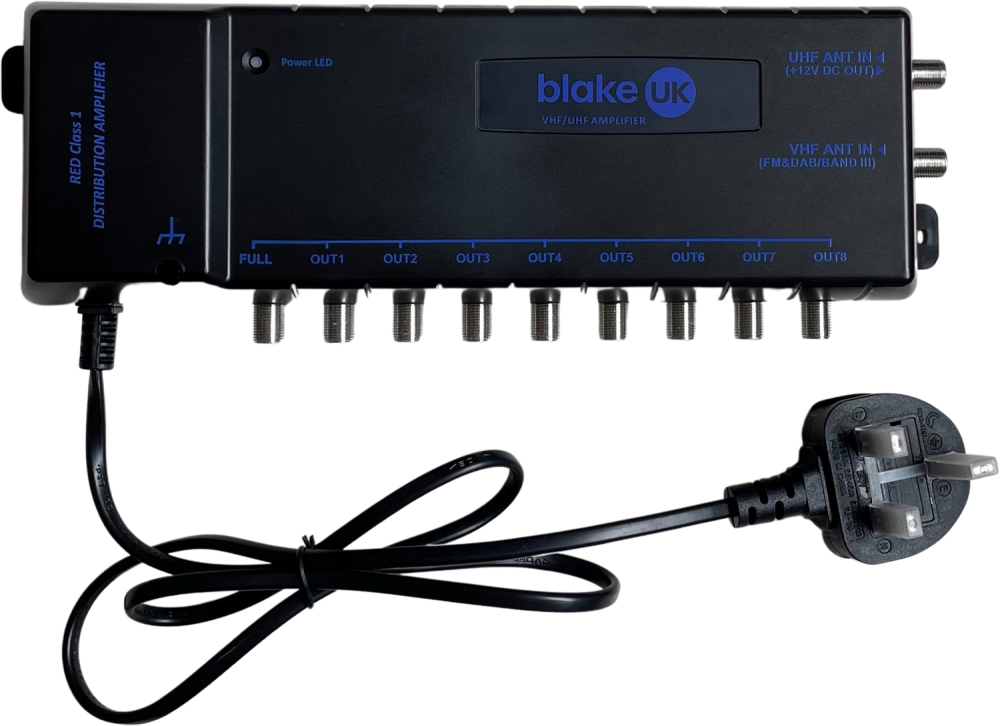

    Blake UK BLAAMP28 with 8 F-type outputs

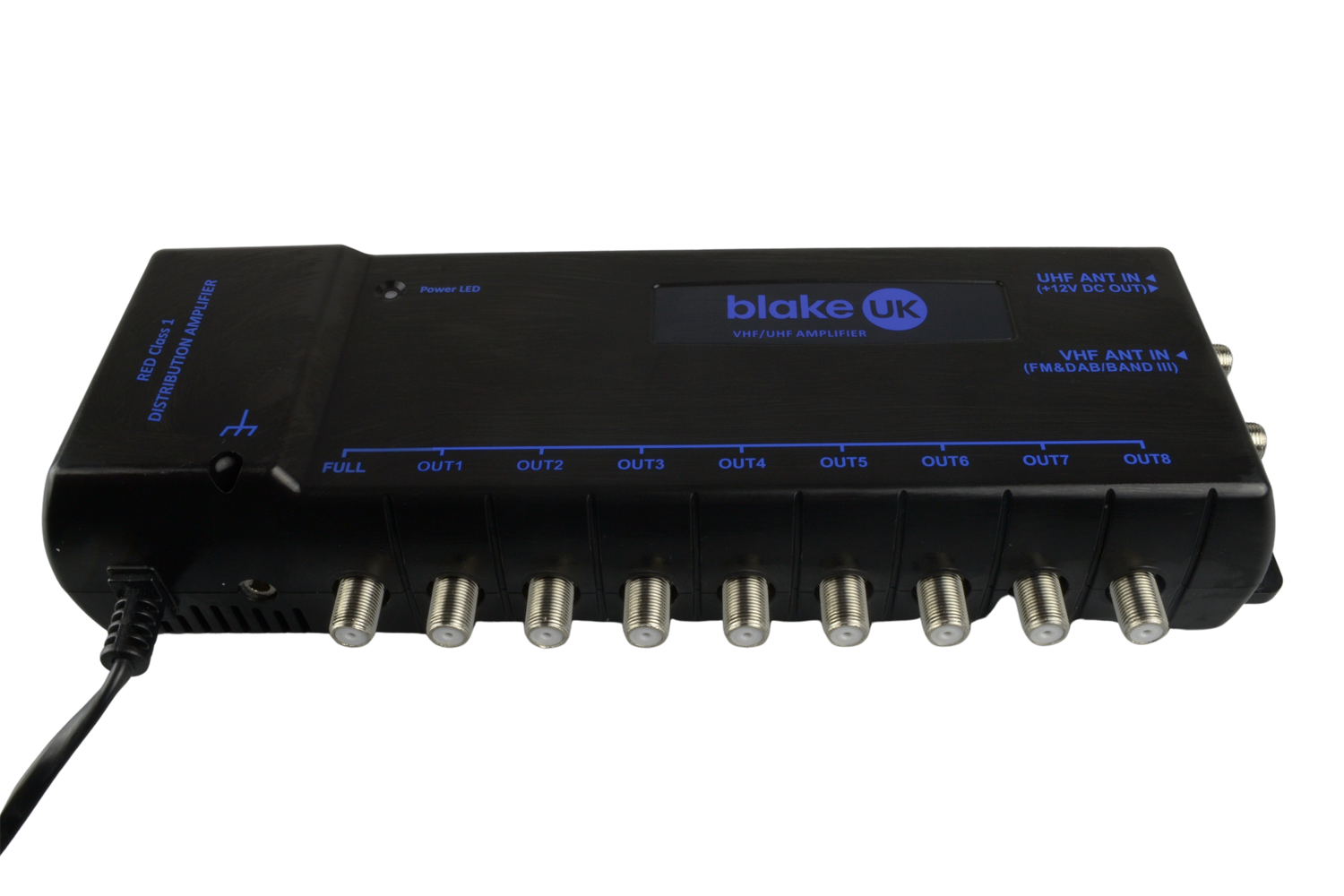

    BLAAMP28 installed in signal distribution rack showing FM/DAB/UHF input connections

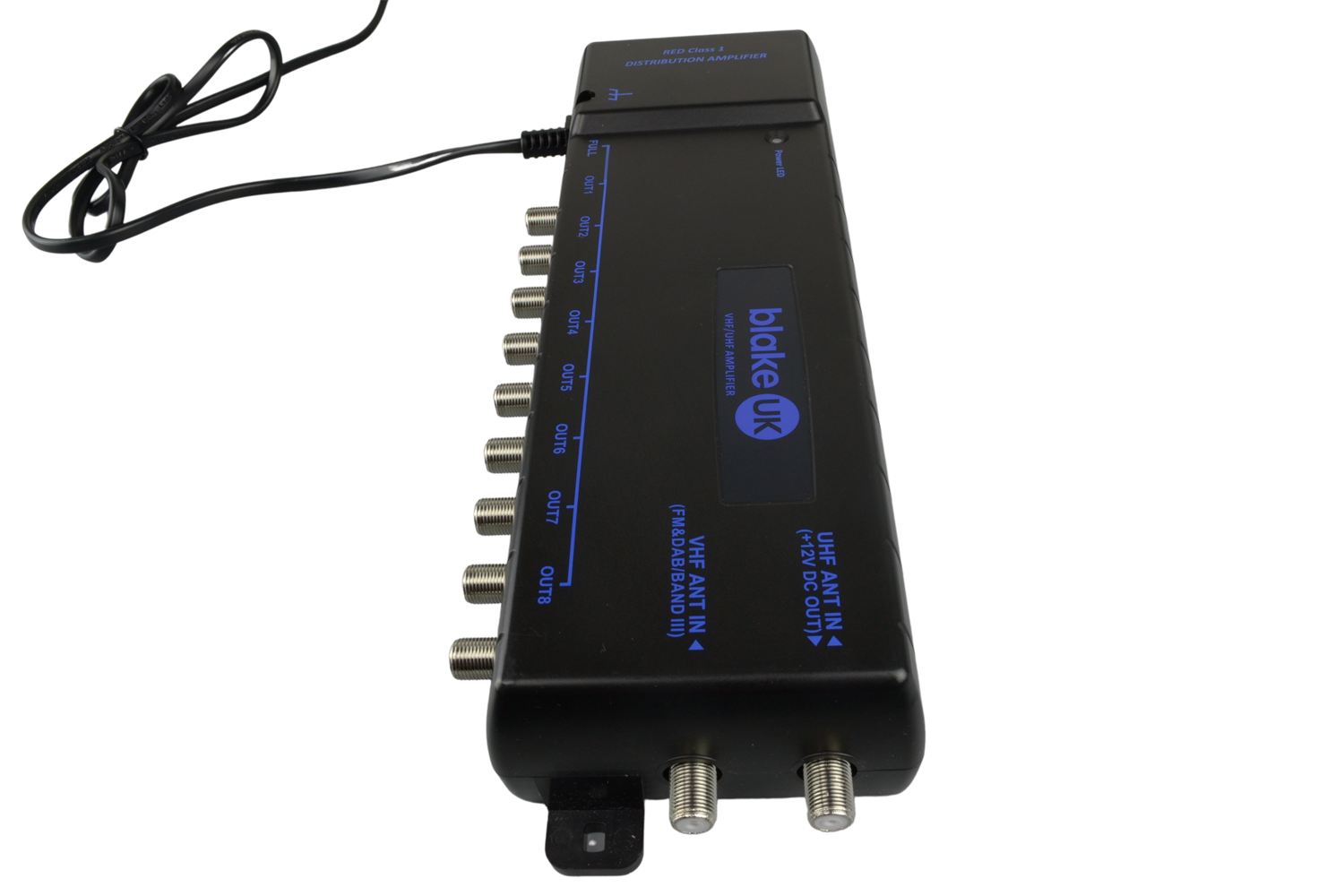

    Blake UK BLAAMP28, dual-input UHF/VHF and full-output 16 dB port

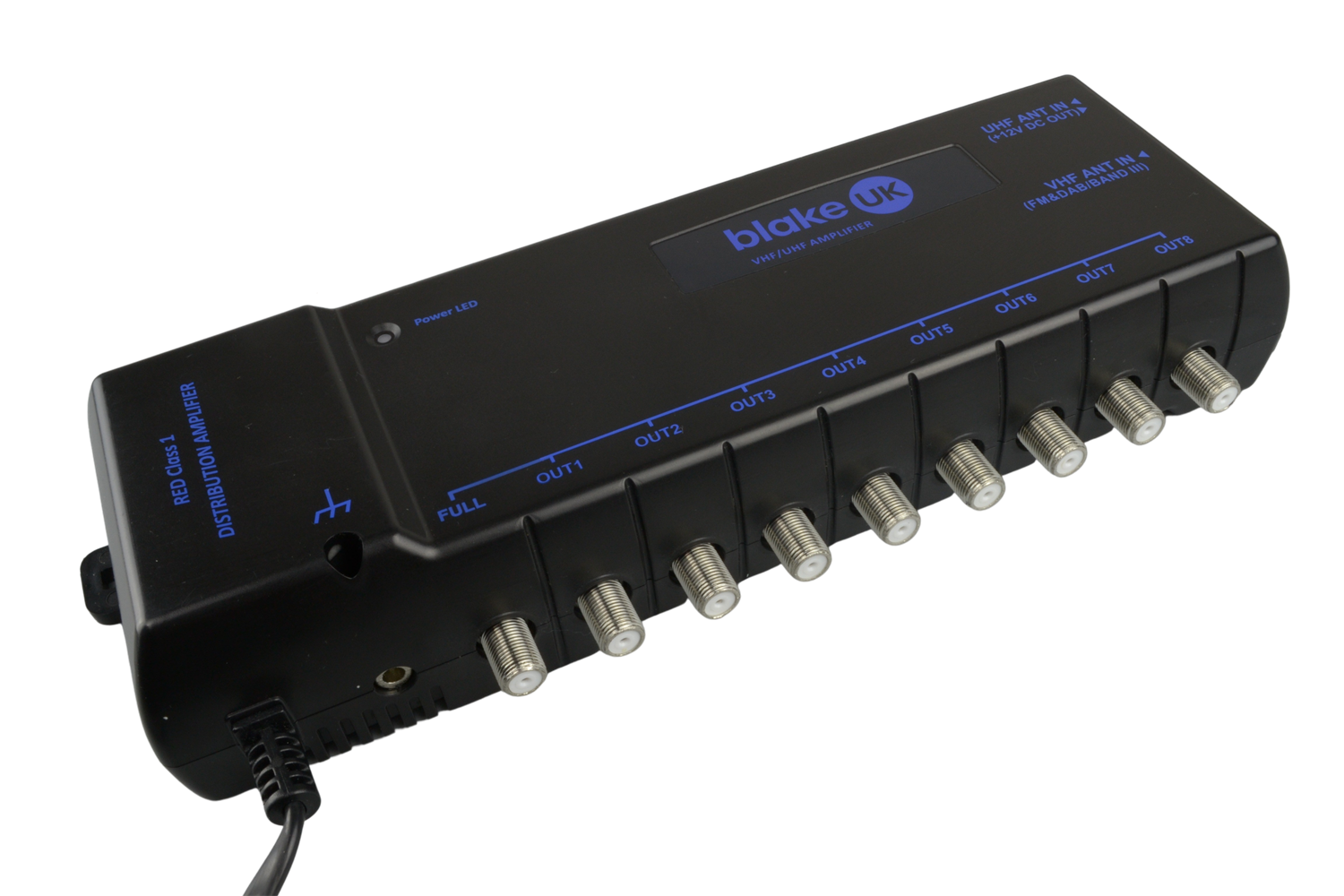

    BLAAMP28 amplifier with triple-filtering 4G/5G/TETRA and LED status indicators

    Share this product on social media

    SKU: BLAKE-BLAAMP28
    Blake UK Shop Blake UK

    The Blake UK Class 1 8-Way FM/DAB/UHF Distribution Amplifier (BLAAMP28) is a RED-compliant, triple-filtered amplifier with 2 inputs available at IC Plus

    Warranty: RTB - 120 Months



    Product Description
    8-Way TV and Radio Distribution Amplifier UHF/FM/DAB

    This CE/UKCA-certified Class 1 RED-compliant set-back distribution amplifier boosts TV (UHF) and radio (FM/DAB) frequencies, delivering clear reception to up to eight TVs. It reduces interference from 5G/4G LTE and TETRA, operating within the 21-48 band (470-694MHz) and provides 8dB gain per output. The additional 16dB FULL output makes it ideal for large or extended installations, and supports daisy-chaining multiple amplifiers.

    Features:

    • 2 inputs UHF and VHF, 8 outputs
    • Linear 8dB gain Ch 21-48
    • Low noise figures (2.2dB typical)
    • Full output (16dB) allows daisy chain
    • F-Type connectors
