SKU: IPS-CS4010-8ET2GT-110
Shop Dahua
CS4010-8ET2GT-110 10 port cloud managed Layer 2 switch with 8 PoE ports, 2 Gigabit uplink ports, 110W PoE budget and IEEE 802.3af. Available at IC Plus.
MPN:
DH-CS4010-8ET2GT-110
Warranty:
Warranty TBC - Contact Us for Confirmation
Register/Login to View Price

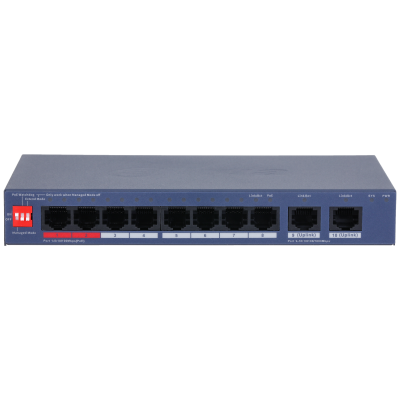

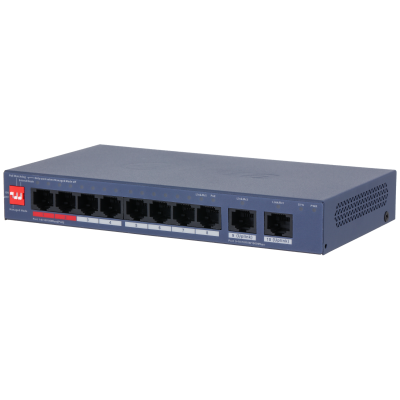

The CS4010-8ET2GT-110 is a 10 port cloud managed desktop switch featuring 8 × 10/100 Mbps PoE ports and 2 × Gigabit RJ45 uplink ports. Designed as a Layer 2 network switch, it provides reliable data connectivity and Power over Ethernet delivery for IP surveillance, networking, and connected edge devices through a total PoE budget of 110 W.
Features
- 8 × RJ-45 10/100 Mbps PoE ports, 2 x RJ-45 Gigabit ports.
- 110 W total PoE budget, 802.3af/at on all PoE ports, additional 802.3 bt on red ports.
- DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE.
- Wide operating temperature ranging from –10 °C to 55 °C.
- Supports VLAN and loop protection.
- WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network.
- Easy config to auto detect and set up network and security systems.
High Performance Switching Architecture
Built on a Layer 2 switching platform, the switch delivers a switching capacity of 5.6 Gbps and a packet forwarding rate of 4.17 Mpps, ensuring efficient traffic handling across connected devices. Support for jumbo frames up to 9216 bytes, an 8K MAC address table, and a 4 Mbit packet buffer helps maintain stable performance in demanding network environments with multiple connected endpoints.
Advanced Network Control and Reliability
The switch incorporates a comprehensive set of network management and control functions including IEEE 802.1Q VLAN support, LLDP, DHCP client functionality, port isolation, loop prevention, MAC and port binding, traffic storm control, and local port mirroring. These capabilities enhance network segmentation, improve fault detection, and support efficient administration while maintaining network stability and security.
Industrial Grade Protection and Flexible Installation
Designed for continuous operation, the switch features electrostatic discharge protection up to 8 kV air discharge and 6 kV contact discharge, along with lightning protection rated up to 6 kV common mode. The
durable sheet metal enclosure supports both desktop and wall mounting installations, while the operating temperature range from –10 °C to +55 °C enables deployment across a variety of indoor commercial and security environments.
